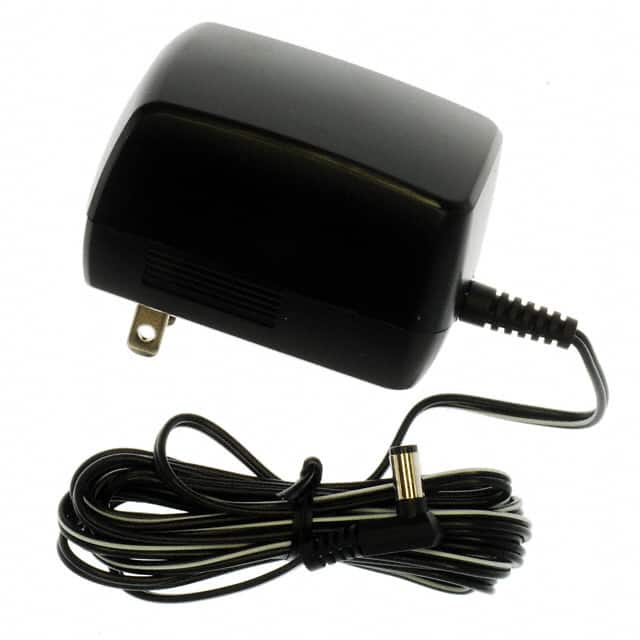

318AS18020 The Tamura 318AS18020 is an AC/DC wall mount adapter providing 18V at 3.6W. It features a NEMA 1-15P input connector and is designed for North American use.
Mfr Part #:

318AS18020

Mfr Name: Tamura
Tamura
The Tamura 318AS18020 is an AC/DC wall mount adapter providing 18V at 3.6W. It features a NEMA 1-15P input connector and is designed for North American use.
Stock on Request

318AS18020 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Form
Height
Input Connector
Input Type
Length
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Voltage
Width
View Similar Products (0)

318AS18020 Description

Short technical summary and product information.

This Tamura 318AS18020 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 18V output with a power rating of 3.6W, drawing 200mA.



The adapter features a NEMA 1-15P input connector and a barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 12.5mm) with positive center polarization. Its dimensions are 70.0mm x 46.0mm x 43.0mm, and it operates within a temperature range of -10°C to 40°C.



Designed for North America, this adapter carries cULus approval. It is a Class II, Wall Mount type, suitable for various commercial electronic devices requiring a reliable power source.

318AS18020 Quick Information

Product Type: AC DC Desktop, Wall Adapters
Canonical Name: Tamura 318AS18020 AC/DC Wall Mount Adapter
Subcategory: Wall Adapters

318AS18020 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

318AS18020 Features

  • 18V output voltage at 3.6W power
  • NEMA 1-15P input connector
  • Barrel plug output connector
  • cULus approval for safety
  • Designed for North American region

318AS18020 Applications

  • Suitable for ITE commercial applications
  • Ideal for wall-mounted power solutions
  • Used in devices requiring 18V DC
  • Compact form factor for integration

318AS18020 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the 318AS18020?

18V DC.

What is the output current?

200mA.

What is the power rating?

3.6W.

What is the operating temperature range?

-10°C to 40°C.

What are the dimensions of the adapter?

70.0mm x 46.0mm x 43.0mm.

What type of output connector does it have?

Barrel plug, 2.1mm ID x 5.5mm OD, right angle.

What safety approvals does the 318AS18020 have?

cULus approved.
