| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Tape & Reel | |
| Voltage | |
| Width |

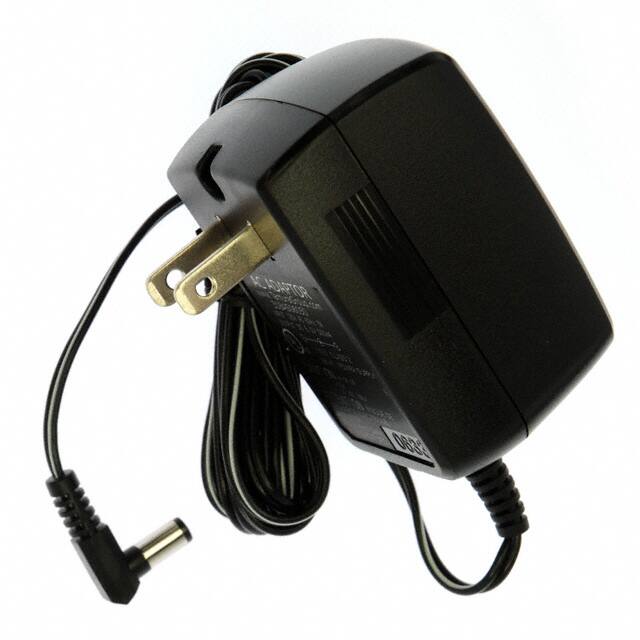

This Tamura 318AS06050 is an AC/DC wall mount adapter with a 6V output voltage and a current rating of 500mA, delivering a total power of 3W. It is designed for ITE (Commercial) applications and features a NEMA 1-15P input connector and a fixed blade input type.
The adapter has a compact form factor, measuring 70.0mm in length, 46.0mm in width, and 43.0mm in height. The output connector is a right-angle barrel plug with a 2.1mm inner diameter and 5.5mm outer diameter, and a 12.5mm length. It operates within a temperature range of -10°C to 40°C and utilizes positive center polarization.
Compliance is indicated by cULus approval. The unit is RoHS3 compliant and has an MSL of 1. It is designed for wall mounting and falls under Class II safety standards. The cord length is 72 inches (1.83m).
6V
500mA
3W
-10°C to 40°C
NEMA 1-15P
Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Yes, positive center.
