Mfr Part #:

318AS04070

Mfr Name: Tamura

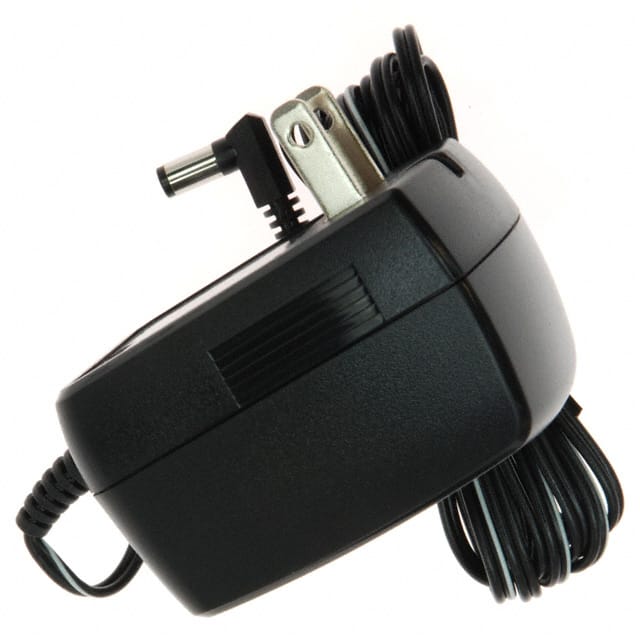

The Tamura 318AS04070 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides a 4.5V output at 700mA, delivering up to 3.2W of power.

Stock on Request

318AS04070 Description

Short technical summary and product information.

This AC/DC wall mount adapter from Tamura, part number 318AS04070, is suitable for ITE (Commercial) applications. It features a NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 12.5mm barrel plug output connector with positive center polarization.

The adapter operates with a fixed blade input and provides a stable 4.5V output at 700mA, totaling 3.2W of power. Its dimensions are 70.0mm in length, 46.0mm in width, and 43.0mm in height. The operating temperature range is from -10°C to 40°C.

Compliance is indicated by cULus approval. The unit is RoHS3 compliant and has an MSL rating of 1 Unlimited. The cord length is 72 inches (1.83m).

318AS04070 Quick Information

Product Type: AC/DC Desktop, Wall Adapter

Canonical Name: Tamura 318AS04070 AC/DC Wall Mount Adapter

Subcategory: Wall Mount

318AS04070 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

318AS04070 Features

Provides 4.5V output at 700mA.
Delivers up to 3.2W of power.
Features NEMA 1-15P input connector.
Includes 2.1x5.5mm barrel output.
RoHS3 compliant for commercial applications.

318AS04070 Applications

Powers commercial ITE equipment.
Provides 4.5V DC for low-power devices.
Suitable for North American wall outlets.
Connects via positive center barrel plug.

318AS04070 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the output voltage and current of the Tamura 318AS04070 adapter?

The adapter provides a 4.5V output at 700mA.

What is the power rating of the Tamura 318AS04070 adapter?

The adapter has a power rating of 3.2W.

What type of input and output connectors does this adapter use?

It features a NEMA 1-15P input connector and a 2.1mm I.D. x 5.5mm O.D. x 12.5mm barrel plug output connector.

What is the operating temperature range for this adapter?

The adapter can operate in temperatures ranging from -10°C to 40°C.

Is the Tamura 318AS04070 adapter RoHS compliant?

Yes, the adapter is RoHS3 Compliant.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Tamura
Applications	ITE (Commercial)
Approval Agency	cULus
Cord Length	72" (1.83m)
Current	700mA
Form	Wall Mount (Class II)
Height	43.0mm (1.69")
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
Length	70.0mm (2.75")
Operating Temperature	-10°C ~ 40°C
Output Connector	Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.5mm
Polarization	Positive Center
Power (Watts)	3.2 W
Region Utilized	North America
Voltage	4.5V
Width	46.0mm (1.81")
