| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Industrial Grade | |
| Insulation | |
| Insulation Material | |
| Lead Style | |
| Length | |
| Metallic Sleeve Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Plating | |
| Stud | |
| Stud Size | |
| Terminal Body Material | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

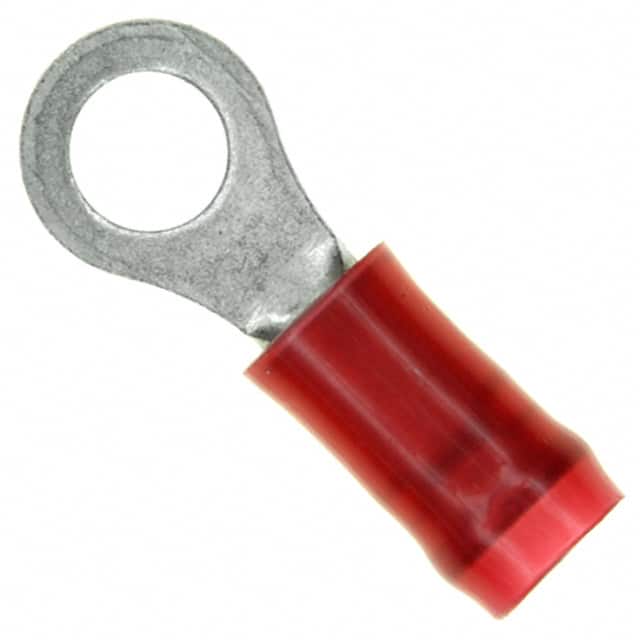

The TE Connectivity 31886 is a PIDG (Pre-Insulated Diamond Grip) ring terminal designed for reliable crimp connections in demanding environments. It features a circular tongue for #8 stud mounting and accepts 16-22 AWG wire.
The terminal is made from high conductivity copper with tin plating per ASTM B-545, providing corrosion resistance. The insulation is nylon rated UL 94V-2, color-coded red for wire size identification. Operating temperature is 105°C and voltage rating is 300V. The terminal body includes inner serrations for maximum electrical contact and tensile strength, plus a metallic sleeve that crimps to the wire insulation for vibration resistance.
Part of the PIDG family, these terminals are designed for high-vibration environments such as industrial controls, lighting, power supplies, and transportation equipment. They meet UL/CSA and Mil-Spec requirements. The free-hanging (in-line) mounting style allows flexible installation.
For ordering information, please refer to distributor listings for available packaging options.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
| 10+ | $0.47 | $0.47 |
| 25+ | $0.44 | $0.44 |
| 50+ | $0.42 | $0.42 |
| 100+ | $0.40 | $0.40 |
| 250+ | $0.38 | $0.38 |
| 500+ | $0.36 | $0.36 |
| 1,000+ | $0.34 | $0.34 |
| 3,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300V.
Free Hanging (In-Line).
16-22 AWG.
#8.
105°C.
Yes, with nylon insulation rated UL 94V-2, color red.
UL/CSA listed and Mil-Spec approved.
