| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating |

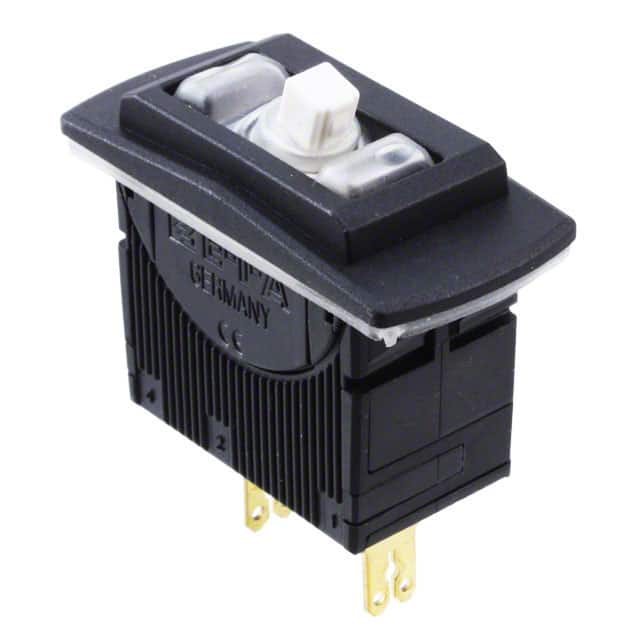

The E-T-A 3131-AF1PT-000000-000-15A is a single-pole thermal circuit breaker that combines circuit breaker and ON/OFF switch functionality. It features a panel mount design and is sealed to provide IP66 rated front of panel water splash protection.
Key technical specifications include a voltage rating of 240 VAC and 28 VDC, with a current rating range of 0.1 to 20 A. This specific model is rated for 15A. The breaker meets the requirements of circuit breaker standard EN 60934 (IEC 60934).
Typical applications for the 3131 series include motor protection, transformer protection, household appliances and office equipment, electrical tools, mobile homes, watercraft, construction vehicles, and medical equipment. The operating temperature range is -20 to +60 °C.
It meets UL 1077 and IEC 60934 standards. The device has an interrupting capacity of 10 x IN for 0.1-2A and 200A for 2.5-20A. The operating area protection class is IP66, while the terminal area is IP00.
The voltage rating is 240 VAC and 28 VDC.
The current rating is 15A.
It uses panel mounting.
The operating temperature range is -20 to +60 °C.
The protection class for the operating area is IP66.
