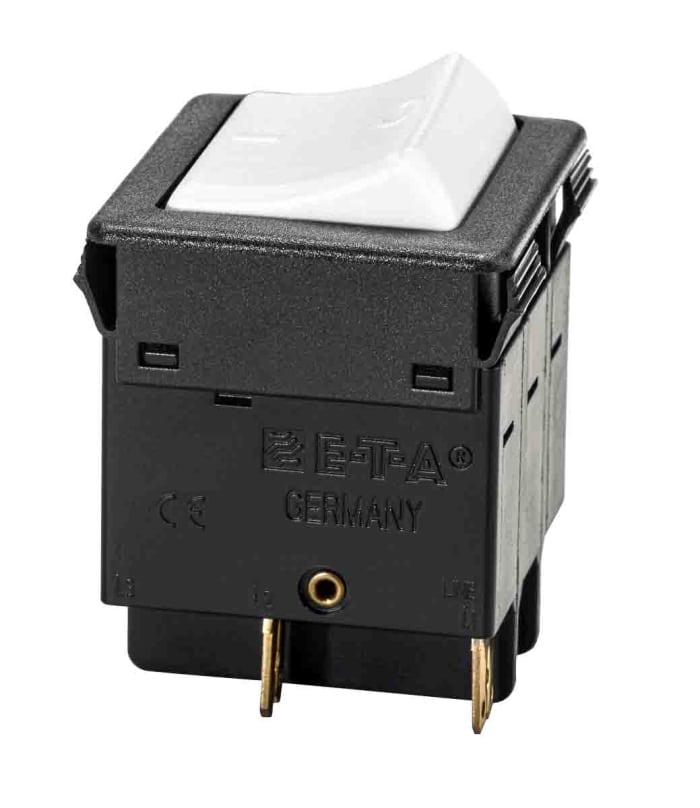

The E-T-A 3130-F130-P7T1-W02Q-16A is a 3-pole thermal overcurrent circuit breaker from the 3130 series. It is designed for snap-in panel mounting and features a rocker actuator for operation.
This circuit breaker has a current rating of 16A and supports voltage ratings of 240V AC and 50V DC. It also has a breaking capacity of 25A and a tripping mechanism that is thermal in nature, with Type R tripping characteristics.
Typical applications for this device include protection for motors, transformers, solenoids, household and office machines, electrical tools, mobile homes, boats, construction vehicles, and medical equipment. The device is approved to CBE standard EN 60934 (IEC 60934).
Key specifications include a 3-pole configuration, snap-in mounting, and screw terminals. The device offers overload protection on all poles and has a typical operational life of 30,000 to 50,000 operations depending on the pole configuration and operating conditions.
The current rating is 16A.
The voltage rating is 250V AC and 50V DC.
This circuit breaker has 3 poles.
It uses a rocker actuator.
The breaking capacity is 25A.
It is designed for panel mounting with snap-in installation.
Typical life is 30,000 operations at 1 x IN for inductive loads at AC 240V and DC 50V (0.1-4A), and 50,000 operations for 2-pole configurations at AC 240V.
