| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

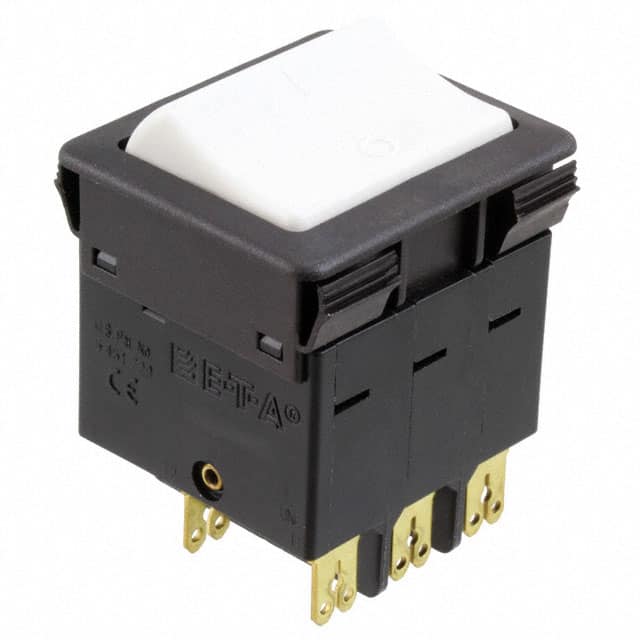

The E-T-A 3130-F130-P7T1-W02Q-12A is a 3-pole thermal overcurrent circuit breaker, part of the 3130 series. It is designed for snap-in panel mounting and offers a compact form factor.
This circuit breaker has a current rating of 12A and supports voltage ratings of 240 VAC for single-phase and 415 VAC for three-phase applications, as well as 50 VDC. It is approved to CBE standard EN 60934 (IEC 60934).
Typical applications include protection for motors, transformers, solenoids, household and office machines, electrical tools, mobile homes, boats, construction vehicles, and medical equipment. The design ensures maximum equipment availability through overload protection and quick resettability, reducing nuisance tripping.
Key features include its thermal trip-free mechanism, rocker actuator, and panel mount capability. The breaker is available with or without illumination and offers a choice of rocker colors.
The current rating is 12A.
It supports AC voltage ratings of 240V (single-phase) and 415V (three-phase), and a DC voltage rating of 50V.
This circuit breaker has 3 poles.
It is a thermal overcurrent circuit breaker.
It features a rocker actuator.
It is designed for panel mounting.
The typical operational life is 30,000 to 50,000 operations, depending on the voltage and load conditions.
