| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Mounting Type | |
| Number of Poles | |
| Rated Voltage | |
| Terminal Type | |
| Voltage Rating | |
| Width |

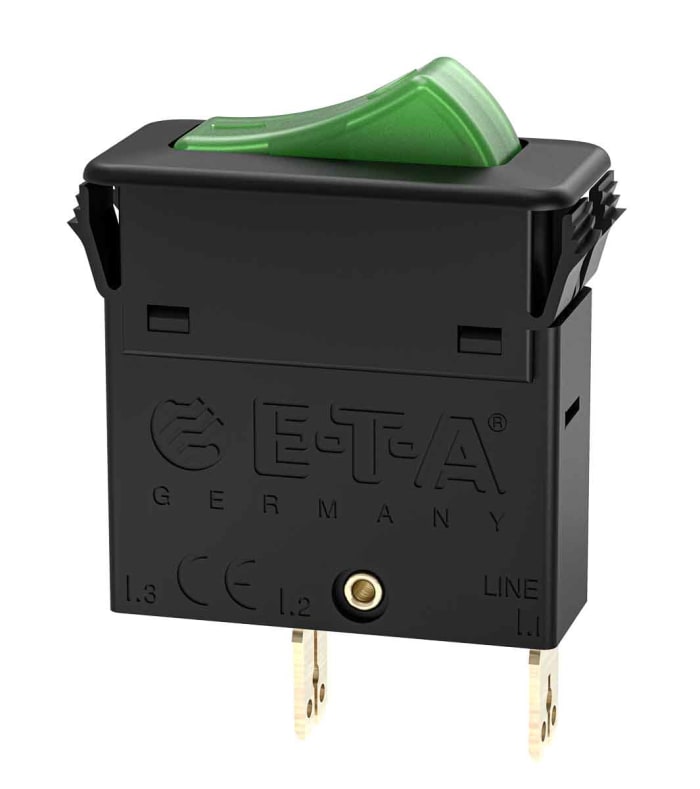

This E-T-A 3130 series thermal circuit breaker, part number 3130-F110-P7T1-W19QY7-10A, is a single-pole device designed for snap-in panel mounting. It offers a current rating of 10A and is suitable for AC voltages up to 250V and DC voltages up to 50V. The breaker type is thermal, with a rocker actuator.
Key electrical specifications include a breaking capacity of 25A. The device is approved to standards such as UL, CSA, and VDE (EN 60934). Typical applications include protection for motors, transformers, solenoids, household and office machines, electrical tools, and medical equipment.
The unit features a trip-free mechanism and is designed for reliable overload protection with quick resettability. Its compact design and snap-in mounting facilitate reduced mounting and wiring time, contributing to less space requirement and lower overall costs.
Rated for 250V AC and 50V DC.
10A continuous.
Thermal tripping.
UL, CSA, VDE (EN 60934) approved.
Width 14.5mm, height 78.5mm.
30,000 operations for 1-pole configuration under rated inductive load.
Panel mount with snap-in installation and screw terminals.
