3120-N311-P7T1-W04F-6A
ETA
The E-T-A 3120-N311-P7T1-W04F-6A is a single-pole thermal circuit breaker with a 6A current rating and panel mount. It combines overcurrent protection with an ON/OFF switch function.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

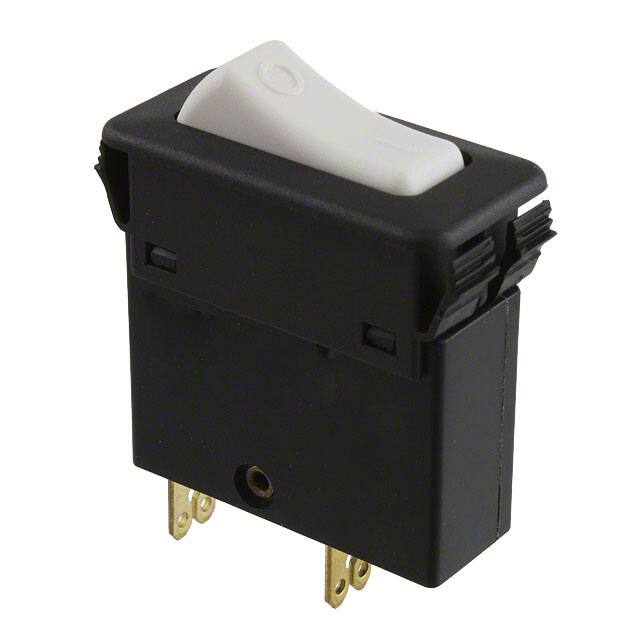

The E-T-A 3130-F110-P7T1-W02Q-6A is a single-pole thermal overcurrent circuit breaker, part of the 3130 series. It is designed for snap-in panel mounting, offering a compact solution for circuit protection.
This breaker has a current rating of 6A and can operate at up to 250V AC or 50V DC. It is approved to CBE standard EN 60934 (IEC 60934).
Typical applications for this type of circuit breaker include protection for motors, transformers, solenoids, household and office machines, electrical tools, mobile homes, boats, construction vehicles, and medical equipment. The design ensures maximum equipment availability through overload protection and quick resettability, reducing nuisance tripping.
Key features include its thermal trip-free mechanism, rocker actuator, and panel mount design. It offers reduced mounting and wiring time, less space requirement, and enhanced overall reliability for various industrial and mobile applications.
The 3130-F110-P7T1-W02Q-6A is rated for 250V AC, 50V DC, 240V AC, 415V 3AC, and 28V DC.
Rated for 6A continuous current; the 1-pole variant supports ratings from 0.1A to 20A.
Panel mount.
Rocker actuator.
1 pole.
30,000 operations for 1-pole at rated inductive loads per IEC/EN 60934.
