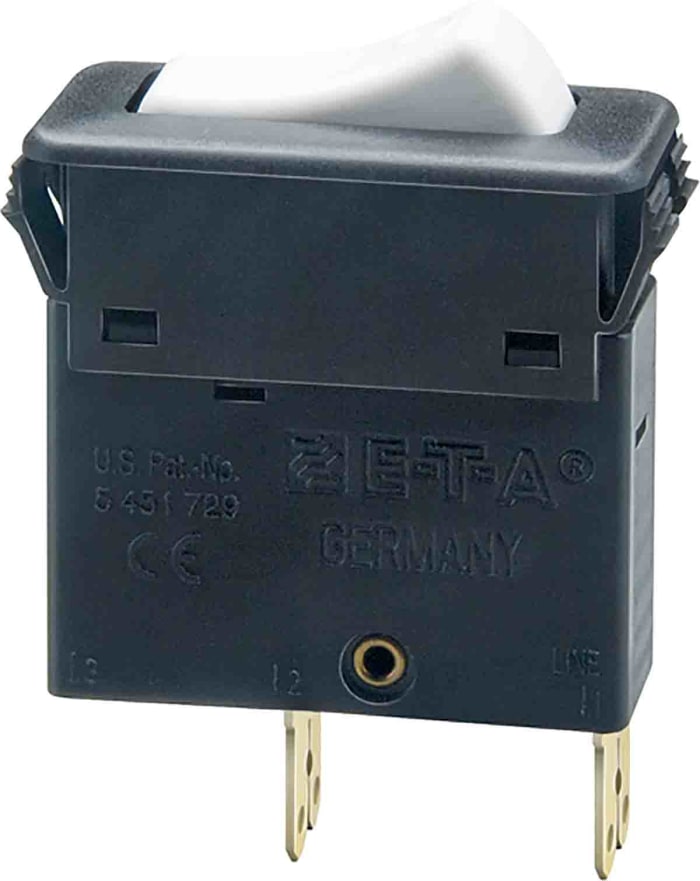

The E-T-A 3130-F110-P7T1-W02Q-5A is a single-pole thermal overcurrent circuit breaker, part of the 3130 series. It combines a rocker switch with a thermal trip-free mechanism, approved to EN 60934 (IEC 60934).
This circuit breaker has a current rating of 5A and a voltage rating of 240V AC or 50V DC. It is designed for snap-in panel mounting and features screw terminals. The tripping mechanism is thermal, with a tripping characteristic of Type R.
Typical applications include protection for motors, transformers, solenoids, household and office machines, electrical tools, mobile homes, boats, construction vehicles, and medical equipment. The device offers overload protection with quick resettability, reduced mounting time, and less space requirement.
Key specifications include a breaking capacity of 25A, a width of 14.5mm, and a height of 78.5mm. The panel thickness it accommodates ranges from 1 to 2.5 mm. Typical operational life is rated at 30,000 operations at nominal current.
The current rating is 5A.
It supports 240V AC, 415V 3-phase AC, 50V DC, and 28V DC.
It uses a thermal tripping mechanism with Type R characteristics.
The breaking capacity is 25A.
It is designed for snap-in panel mounting.
It has a width of 14.5mm and a height of 78.5mm.
Typical life is 30,000 operations for single-pole configurations and 50,000 operations for two-pole configurations under various load conditions.
