| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

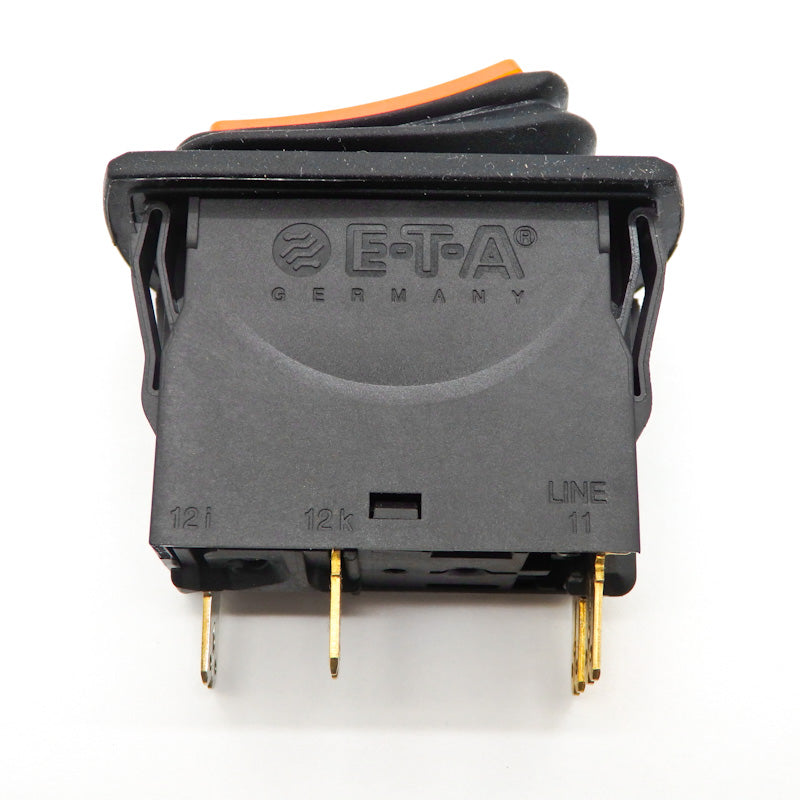

The E-T-A 3120-N554-P7T1-W15DY3-5A is a thermal circuit breaker designed for overcurrent protection. It is rated for 5A continuous current with a voltage rating of 240V AC and 50V DC. The breaker features 2 poles and uses a thermal mechanism for trip action.
This device is panel mounted and actuated by a rocker switch. It includes orange illumination with a nominal voltage of 115V for visual indication. The breaker is suitable for applications requiring reliable circuit protection in industrial or commercial equipment.
The thermal breaker type provides time-delayed overcurrent protection, making it ideal for circuits with inrush currents. The panel mount design allows for easy installation in control panels or enclosures.
240V AC and 50V DC.
5A.
2 poles.
Thermal circuit breaker.
Panel mount.
Rocker actuator.
Yes, orange illumination at 115V nominal.
