3120-N323-P7T1-W12LY4-5A
ETA
The E-T-A 3120-N323-P7T1-W12LY4-5A is a two-pole thermal circuit breaker designed for overcurrent protection. It features a 5A current rating and a 415V voltage rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

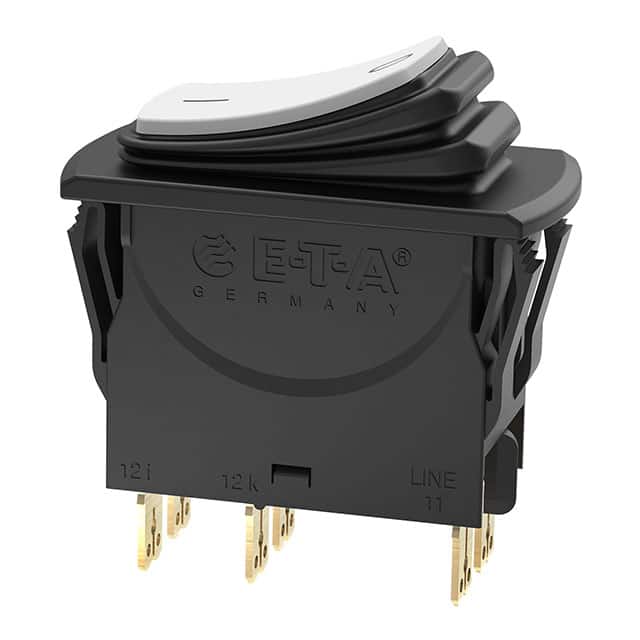

The E-T-A 3120-N324-P7T1-W12DY4-5A is a two-pole thermal circuit breaker that combines overcurrent protection with the function of an ON/OFF switch. It is designed for reliable overload protection of various loads.
Key electrical specifications include a current rating of 5A and a voltage rating of 415V. The breaker type is thermal, and it features a rocker actuator for operation. It is designed for panel mounting.
This circuit breaker is suitable for applications requiring robust protection and easy reset functionality. Its thermal trip element ensures precise overload detection, preventing nuisance tripping and maximizing equipment availability. The illuminated rocker actuator provides visual status indication.
5A
415V
2
Panel Mount
Rocker
IP65
CSA C22.2 No 235, GB 17701, IEC 60934, UL1077
