3120-N521-P7T1-W12FY4-10A
ETA
The E-T-A 3120-N521-P7T1-W12FY4-10A is a 2-pole thermal circuit breaker with a 10A current rating and 415V voltage rating. It features a panel mount design and rocker actuator.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

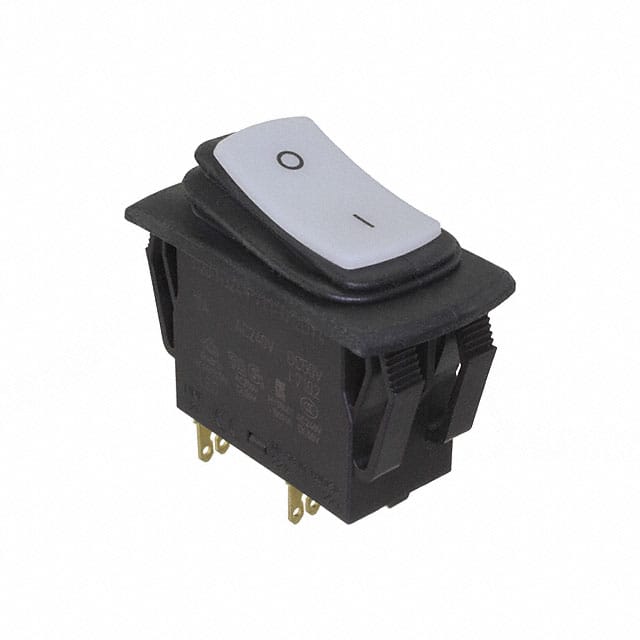

This E-T-A 3120-N324-P7T1-W12DY4-10A is a thermal circuit breaker designed for overcurrent protection and switch functionality. It operates with a 10A current rating and a maximum voltage rating of 415V AC. The breaker is a 2-pole unit, suitable for various applications requiring reliable circuit interruption.
Featuring a panel mount design and a rocker actuator, this circuit breaker offers ease of installation and operation. The illumination is white with a nominal voltage of 230V. It is approved by CSA, GB, IEC, and UL standards, ensuring compliance with safety regulations.
Typical applications for this thermal circuit breaker include motors, pumps, transformers, and cables, providing overload protection. The positively trip-free mechanism ensures reliable disconnection even when the actuator is blocked. It can be easily and quickly reset after tripping, minimizing downtime.
415V
10A
2 poles
Rocker actuator
Yes, with white illumination at 230V.
CSA C22.2 No 235, GB 17701, IEC 60934, UL1077
IP65
