| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

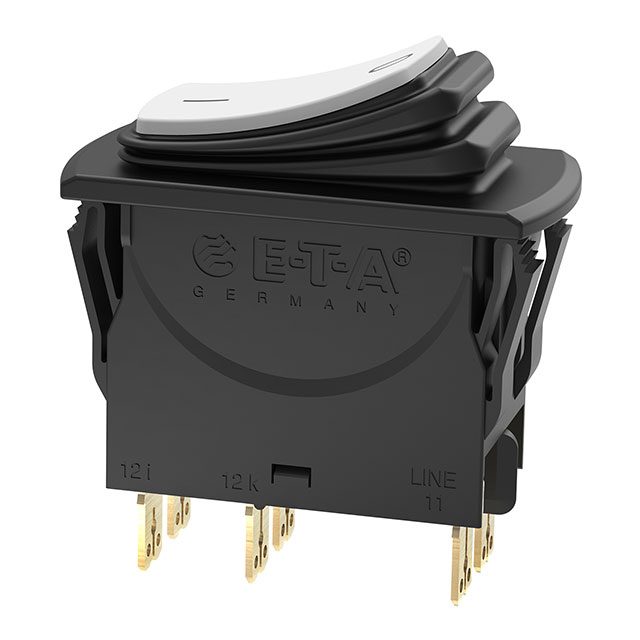

The E-T-A 3120-N324-P7T1-W02D-13A is a thermal circuit breaker that combines overcurrent protection with an ON/OFF switch function. It utilizes a bimetal trip element for reliable operation.
This two-pole breaker is rated for 13A and can handle up to 240VAC or 50VDC, with an option for 415VAC upon request. It is designed for panel mounting and features a rocker actuator for easy operation.
Ideal for protecting motors, pumps, transformers, and cables, this circuit breaker ensures maximum equipment availability through overload protection and quick resettability. Its space-saving design and reduced mounting and wiring time contribute to increased overall reliability.
240 VAC, 50 VDC, and 415 VAC upon request.
13A, with a range of 0.1-20A.
2 poles.
Thermal.
Rocker.
Panel mount.
No illumination.
