3120-F321-P7T1-W04D-10A
ETA

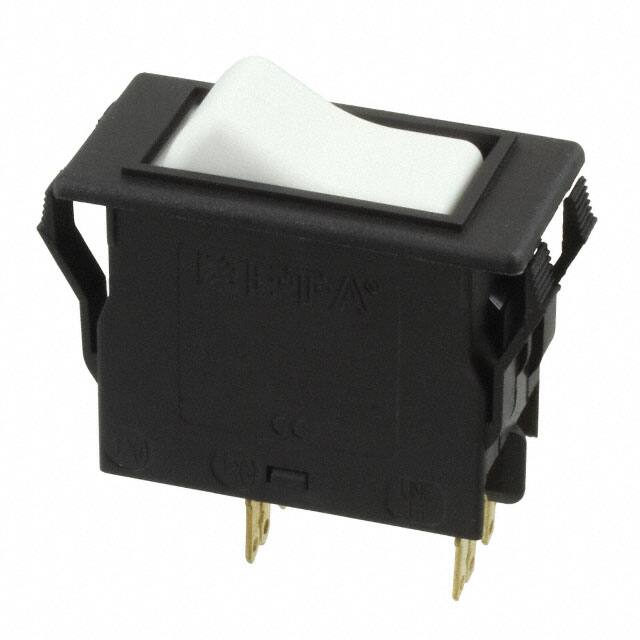

The E-T-A 3120-F321-P7T1-W04D-10A is a thermal circuit breaker with a 10A current rating and 250VAC/50VDC voltage rating. It features a rocker actuator and panel mount.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |
The E-T-A 3120-F521-P7T1-W02Q-10A is a thermal circuit breaker designed for overload protection of motors, pumps, transformers, and cables. It functions as an ON/OFF switch with integral overcurrent protection, utilizing a bimetal trip element.
Key electrical specifications include a current rating of 10A and voltage ratings of 250VAC and 50VDC. This two-pole breaker is designed for panel mounting and features a rocker actuator. It offers an interrupting capacity of 150A (2-pole) and 5000A (UL 1077) at 250VAC.
The breaker operates within an ambient temperature range of -30°C to 60°C and meets IEC 60934 standards. It has a degree of protection of IP40 for the operating area. The typical life expectancy is rated at 30,000 operations at 1x IN for inductive loads under AC 240V conditions.
Typical applications for this circuit breaker include medical and laboratory equipment, apparatus and machine construction, professional tools, household and garden appliances, office machines, audio equipment, and machine tools. It is suitable for reliable switching behavior with positively trip-free operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
It is rated for 250VAC and 50VDC.
This circuit breaker has 2 poles.
It uses a rocker actuator.
The mounting type is Panel Mount.
The ambient temperature range is -30°C to 60°C.
The degree of protection for the operating area is IP40.
