| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Voltage Rating |

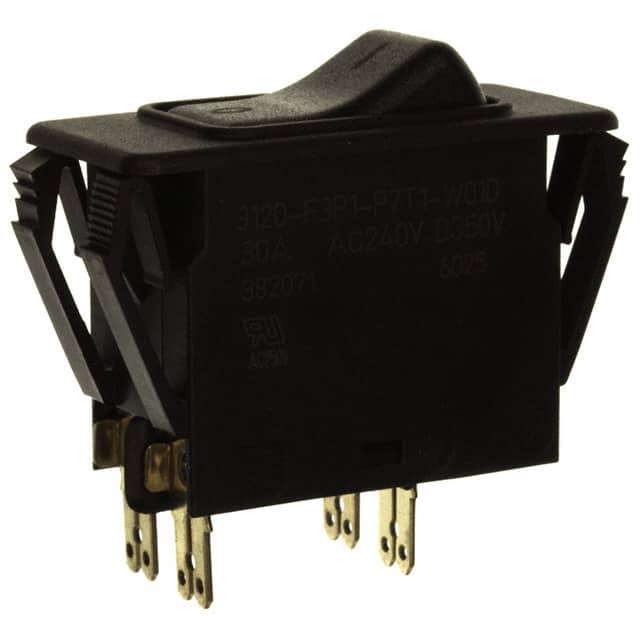

This E-T-A 3120-F3P1-P7T1-W01D-30A is a thermal circuit breaker designed for overload protection of motors, pumps, transformers, and cables. It operates with a current rating of 30A and a voltage rating of 250V AC or 50V DC.
The circuit breaker features a rocker actuator and a panel mount design for convenient integration into systems. It is built with a bimetal trip element and offers reliable switching behavior, being positively trip-free.
Key technical data includes an ambient temperature range of -30 to 60 °C and an interrupting capacity of 5000A at 250V AC (UL 1077). The operating area has a degree of protection of IP40.
Typical applications for this type of circuit breaker include medical and laboratory equipment, apparatus and machine construction, professional tools, household and garden appliances, office machines, audio equipment, and machine tools.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 30A.
It is rated for 250V AC and 50V DC.
It has a rocker actuator.
It is designed for panel mounting.
The ambient temperature range is -30 to 60 °C.
Approval agencies include CSA C22.2 No 235, GB 17701, IEC 60934, and UL1077.
