| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

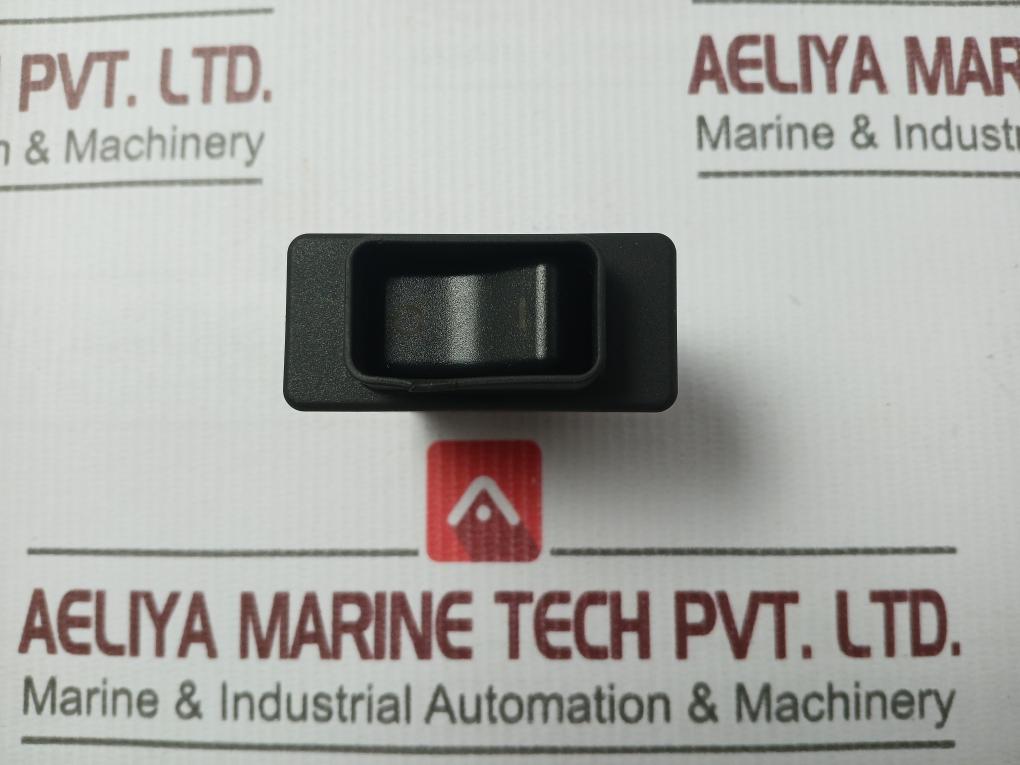

This E-T-A 3120-F323-P7T1-W01K-10A is a thermal circuit breaker designed for overload protection of motors, pumps, transformers, and cables. It functions as an ON/OFF switch with integral overcurrent protection, utilizing a bimetal trip element.
Key technical specifications include a 10A current rating, 250VAC and 50VDC voltage ratings, and a 2-pole configuration. The breaker features rocker actuation for user interface and is designed for convenient snap-in mounting, specifically a panel mount type.
Typical applications for this circuit breaker include medical and laboratory equipment, apparatus and machine construction, professional tools, household and garden appliances, office machines, and audio equipment. It offers reliable switching behavior with positively trip-free operation. The operating temperature range is from -30 to 60 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
It is rated for 250 VAC and 50 VDC.
This circuit breaker has 2 poles.
It uses rocker actuation.
The mounting type is Panel Mount.
The ambient temperature range is -30 to 60 °C.
It is approved by CSA C22.2 No 235, GB 17701, IEC 60934, and UL1077.
