| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Type | |
| Voltage Rating |

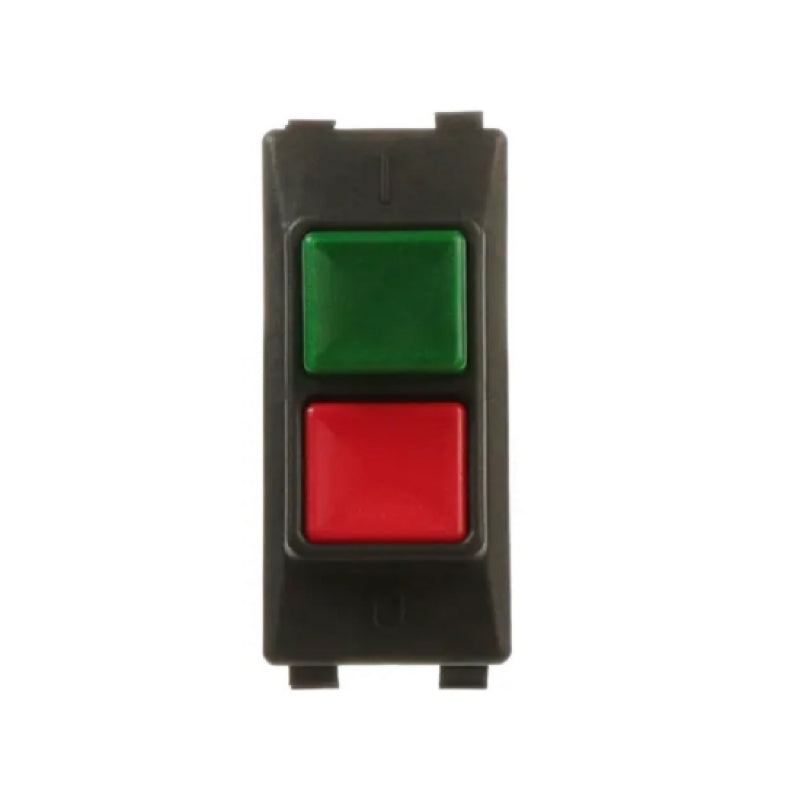

The E-T-A 3120-F31F-P7T1-SGRX-15A is a thermal circuit breaker that combines ON/OFF switching with integral overcurrent protection, conforming to S-type TO CBE to EN/IEC 60934 standards. It utilizes a bimetal trip element and is suitable for protecting motors, pumps, transformers, and cables from overloads.
Key electrical specifications include a current rating of 15A and a voltage rating of 250 VAC or 50 VDC. This single-pole breaker offers reliable switching behavior with a positively trip-free mechanism. It is designed for convenient snap-in mounting and features a pushbutton actuator with green/red illumination indicators.
Typical applications for the 3120-F series include medical and laboratory equipment, apparatus and machine construction, professional tools, household and garden appliances, office machines, and audio equipment. The breaker operates within an ambient temperature range of -30 to 60 °C and offers an interrupting capacity of up to 250A (2-pole).
This model is designed for panel mounting and has an operating area degree of protection of IP40. The 3120 circuit breaker is also available in a switch-only version.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 15A.
It has a voltage rating of 250 VAC and 50 VDC.
This circuit breaker has 1 pole.
It uses a pushbutton actuator.
The ambient temperature range is -30 to 60 °C.
The operating area has a degree of protection of IP40.
