3120-F311-P7T1-W12DY3-10A
ETA

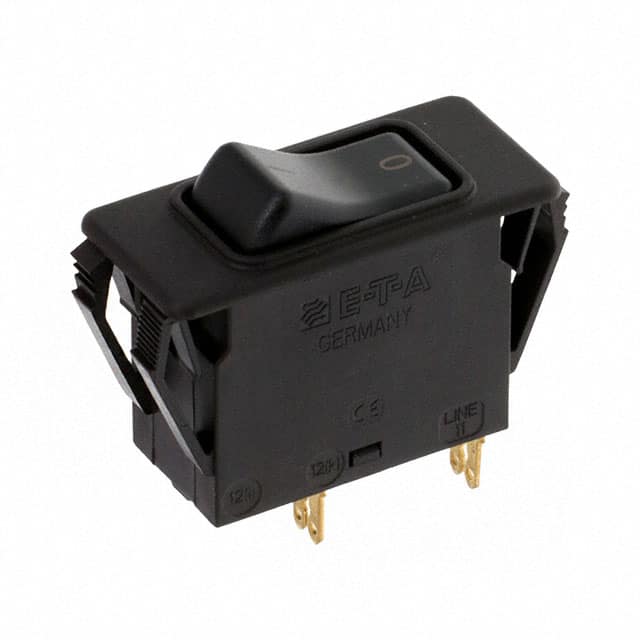

The E-T-A 3120-F311-P7T1-W12DY3-10A is a 10A thermal circuit breaker designed for panel mounting. It offers reliable overcurrent protection with rocker actuation.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating |
The E-T-A 3120-F311-P7T1-W01D-10A is a thermal circuit breaker that combines ON/OFF switching with integral overcurrent protection, conforming to S-type TO CBE to EN/IEC 60934 standards. Its trip element is bimetal, making it suitable for overload protection of motors, pumps, transformers, and cables.
Key technical specifications include a current rating of 10A and a voltage rating of 250 VAC or 50 VDC. It is a single-pole device with a rocker actuator and panel mount capability. The breaker offers a high interrupting capacity of 5000A at 250 VAC and 1000A at 50 VDC (UL 1077).
This circuit breaker is designed for reliable switching behavior with positively trip-free operation. It operates within an ambient temperature range of -30 to 60 °C and has a degree of protection of IP40 at the operating area. Typical applications include medical and laboratory equipment, apparatus and machine construction, professional tools, household and garden appliances, office machines, audio equipment, and machine tools.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 10A.
It has a voltage rating of 250 VAC and 50 VDC.
This circuit breaker is designed for panel mounting.
It features a rocker actuator.
The ambient temperature range is -30 to 60 °C.
The operating area has a degree of protection of IP40.
