| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clearance/Creepage Distance | |
| Color | |
| Connection Capacity (Multi Wire) | |
| Connection Capacity (Multi Wire) (@ AWG) | |
| Connection Capacity (Single Wire) | |
| Connection Capacity (Single Wire) (@ AWG) | |
| Current | |
| Flammability Class | |
| Glow Wire Flammability Index (GWFI) | |
| Glow Wire Ignition Temperature (GWIT) | |
| Insulating Material | |
| Insulation Material Class | |
| Insulation Strip Length | |
| Lead Spacing | |
| Lead Style | |
| Lower Limit Temperature | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Protection Category | |
| Rated Current | |
| Rated Voltage | |
| Screw Surface | |
| Terminal Body Material | |
| Terminal Body Surface | |
| Terminal Body Thread | |
| Termination Style | |
| Tightening Torque (@ SEV) | |
| Tightening Torque (@ UL) | |
| Type | |
| Upper Limit Temperature | |
| Voltage | |
| Wire Gauge or Range | |
| Wire Protector Material |

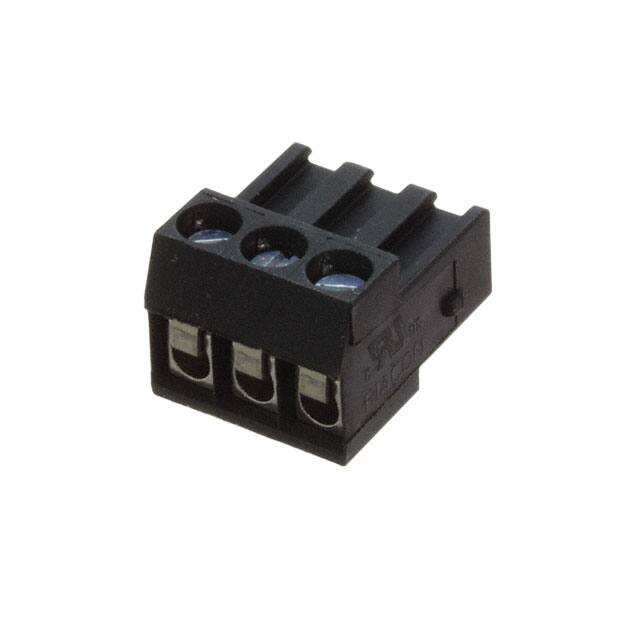

The METZ CONNECT 31169103 is a screw type terminal block plug designed for reliable wire connections in industrial and building automation applications. This plug features 3 positions with a 3.50mm pitch and offers a rated current of 5A at 150V.
The termination uses a screw - rising cage clamp mechanism, accepting single wires from 0.08 to 1.5 mm² (AWG 28-16) and multi-wire from 0.08 to 1 mm². The plug wire entry is 180° (vertical) and the mounting type is free hanging (in-line). The housing is made of PA66 with V0 flammability rating, and the terminal body is copper alloy with nickel plating.
This plug has an operating temperature range of -40°C to 105°C, making it suitable for a wide range of environments. It is rated IP20 for protection against solid objects. The insulating material has a CTI of 600, and the product is designed for use in applications requiring glow wire resistance (GWFI 960°C, GWIT 775°C).
Ideal for use in terminal block systems where reliable and secure connections are required, such as in control panels, building automation, and industrial equipment. The 3.50mm pitch allows for space-saving installations while maintaining adequate creepage and clearance distances of 2mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.92 | $2.92 |
| 10+ | $2.09 | $2.09 |
| 25+ | $1.82 | $1.82 |
| 50+ | $1.65 | $1.65 |
| 100+ | $1.51 | $1.51 |
| 250+ | $1.37 | $1.37 |
| 500+ | $1.28 | $1.28 |
| 1,000+ | $1.21 | $1.21 |
| 5,000+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3
3.50mm
5A
150V
Free hanging (in-line)
AWG 28-16 for single and multi-wire
-40°C to 105°C
