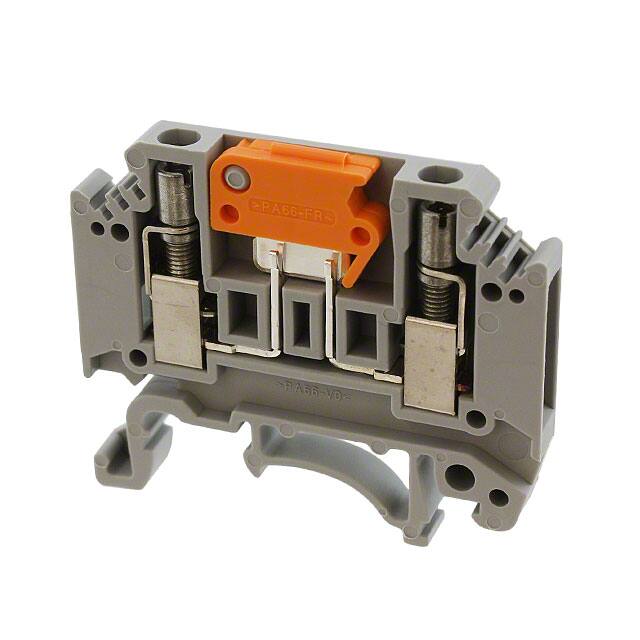

3104013 Phoenix Contact 3104013 is a disconnect terminal block with 2 positions, 5.2 mm pitch, and screw termination. It is rated for 16 A and 400 V.
Mfr Part #:

3104013

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 3104013 is a disconnect terminal block with 2 positions, 5.2 mm pitch, and screw termination. It is rated for 16 A and 400 V.
✓ Total Stock: 465 pcs
$ Price Range: $9.86

3104013 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
465 pcs
On Request
465 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3104013 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Disconnect Type
Industrial Grade
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Terminal
Termination Style
Type
Voltage
Width
Wire Gauge or Range
View Similar Products (0)

3104013 Description

Short technical summary and product information.

The Phoenix Contact 3104013 is a disconnect and test disconnect terminal block designed for DIN rail mounting. It features a screw connection type and accepts solid conductors from 0.2 to 4 mm² and stranded conductors from 0.2 to 2.5 mm² (24-12 AWG). The terminal block has 2 positions and a single level, with a width of 5.2 mm and a length of 46 mm.



This component is rated for a nominal voltage of 400 V and a nominal current of 16 A, with a maximum load current of 16 A when using a 4 mm² conductor. It includes a knife-style disconnect switch for circuit isolation. The insulating material is polyamide (PA) with a V0 flammability rating per UL 94.



The terminal block is designed for mounting on NS 35/7.5, NS 35/15, or NS 32 DIN rails. It has a rated surge voltage of 6 kV, a pollution degree of 3, and a surge voltage category of III, making it suitable for industrial control and power distribution applications.

3104013 Quick Information

Product Type: Disconnect Terminal Block
Series: MTK-P/P
Canonical Name: Disconnect and Test Disconnect Terminal Block, Screw Connection, 2 Positions, 5.2 mm Width
Subcategory: Din Rail, Channel

3104013 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3104013 Estimated Pricing

Qty Low High
1+ $9.86 $9.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

3104013 Features

  • 2-position disconnect terminal block with knife switch.
  • Screw termination for 24-12 AWG conductors.
  • Rated for 16 A nominal current and 400 V.
  • PA insulating material with V0 flammability rating.
  • Mounts on NS 35/7.5, NS 35/15, and NS 32 DIN rails.

3104013 Applications

  • Used for circuit isolation in control panels.
  • Ideal for power distribution in industrial systems.
  • Suitable for test and measurement applications.
  • Common in factory automation and machinery.

3104013 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 3104013 terminal block have?

It has 2 positions.

What is the pitch of the Phoenix Contact 3104013?

The pitch is 5.2 mm.

What is the current rating of the 3104013?

The nominal current is 16 A, with a maximum load current of 16 A with a 4 mm² conductor.

What is the voltage rating of the 3104013?

The nominal voltage is 400 V.

What mounting types are compatible with the 3104013?

It mounts on NS 35/7.5, NS 35/15, and NS 32 DIN rails.

What wire gauge does the 3104013 terminal block accept?

It accepts 24-12 AWG solid or stranded wire.

What is the disconnect type of the 3104013?

It features a knife switch disconnect type.
