| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Contact Resistance | |
| For Use With | |
| Insulation Resistance | |
| Mounting Type | |
| Panel Thickness | |
| Storage Conditions | |
| Terminal |

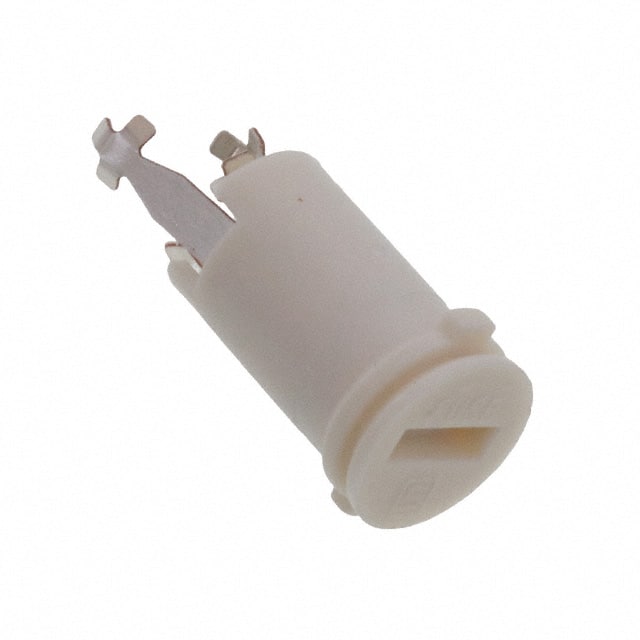

The Schurter Inc. 3101.8012 is a fuseholder carrier designed for 5x20mm fuse links. It features a snap-in mounting attachment for front-side installation into panels with a thickness ranging from 1.0 to 3.0 mm. This compact carrier provides an IP40 degree of protection.
Electrically, the 3101.8012 is rated for 250 VAC at 10A according to VDE standards, and 500V at 16A according to UL/CSA standards. It has a rated power acceptance of 2.5W at 10A under IEC conditions at 23°C. The terminals are suitable for solder or 4.8 x 0.5 mm quick-connect connections.
Constructed with a thermoplastic socket (UL 94V-0) and tin-plated copper alloy terminals, this fuseholder carrier is suitable for appliances with protection class I. It operates within an admissible ambient temperature range of -40°C to 85°C and adheres to climatic category 40/085/21.
Applications for this fuseholder carrier include household appliances and medical equipment.
The Schurter 3101.8012 carrier is designed for 5 x 20 mm fuse links.
The rated voltage is 250 VAC (VDE) and 500 V (UL/CSA).
The rated current is 10 A (VDE) and 16 A (UL/CSA).
The admissible ambient temperature range is -40 °C to 85 °C.
The degree of protection is IP40.
The carrier is designed for panel thicknesses from 1.0 to 3.0 mm.
