| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Contact Resistance | |
| For Use With | |
| Insulation Resistance | |
| Panel Thickness | |
| SVHC Present | |
| Storage Conditions | |
| Terminal |

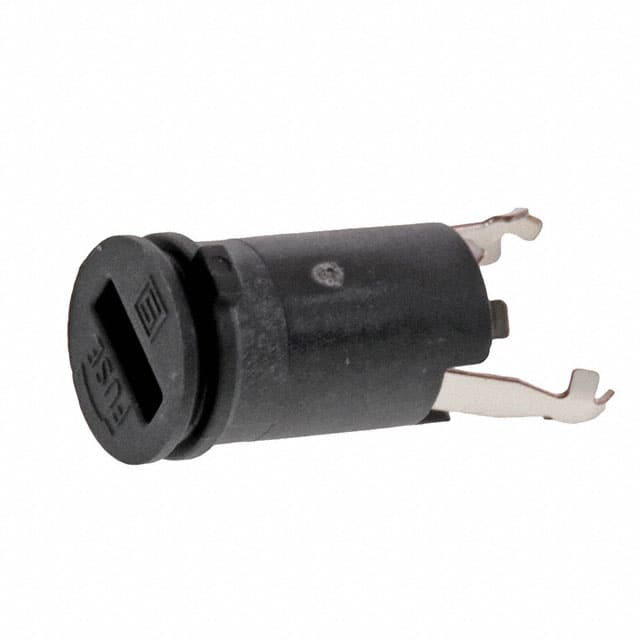

The SCHURTER 3101.8011 is a compact, snap-in fuse holder designed for 5x20mm fuse links. It features a shock-safe category of PC2 and provides IP40 ingress protection.
This fuse holder is rated for 250 VAC (VDE) and 500 V (UL/CSA), with a rated current of 10A (VDE) or 16A (UL/CSA). It supports panel mounting with a thickness range of 1.0 to 3.0 mm and utilizes solder or quick-connect terminals (4.8 x 0.5 mm).
Applications for the 3101.8011 include household appliances and medical equipment. The socket is constructed from black thermoplastic (UL 94V-0) and the terminals are tin-plated copper alloy. It operates within an admissible ambient temperature range of -40°C to 85°C.
The SCHURTER 3101.8011 fuse holder is designed for 5 x 20 mm fuse links.
The rated voltage is 250 VAC according to VDE standards and 500 V according to UL/CSA standards.
The rated current is 10 A according to VDE standards and 16 A according to UL/CSA standards.
The degree of protection is IP40.
The admissible ambient temperature range is -40°C to 85°C.
The panel thickness range for mounting is 1.0 to 3.0 mm.
The SCHURTER 3101.8011 fuse holder is suitable for household appliances and medical equipment.
