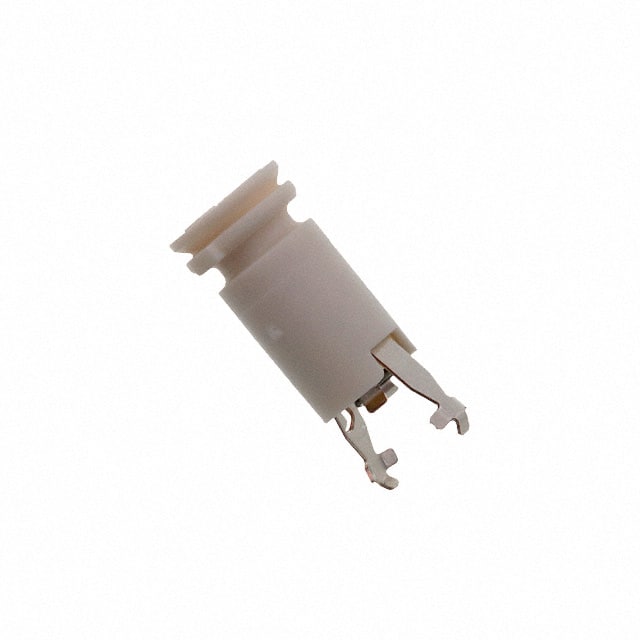

3101.7012 The Schurter Inc. 3101.7012 is a fuseholder carrier designed for 5x20mm fuses. It offers IP40 protection and is suitable for household appliances and medical equipment.
Mfr Part #:

3101.7012

Mfr Name: Schurter Inc.
Schurter Inc.
The Schurter Inc. 3101.7012 is a fuseholder carrier designed for 5x20mm fuses. It offers IP40 protection and is suitable for household appliances and medical equipment.
Stock on Request

3101.7012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Contact Resistance
For Use With
Insulation Resistance
Panel Thickness
Storage Conditions
Terminal
View Similar Products (0)

3101.7012 Description

Short technical summary and product information.

The Schurter Inc. 3101.7012 is a fuseholder carrier from the FPG1 series, specifically designed to accommodate 5 x 20 mm fuse links. This component features a thermoplastic socket in black, UL 94V-0 rated, with tin-plated copper alloy terminals. It is suitable for panel mounting from the front side and utilizes a fixing nut for attachment.



The fuseholder carrier offers a degree of protection rated at IP40, making it suitable for applications where dust and solid objects are a concern. It is designed to work with a rated voltage of 250 VAC (VDE) or 500 V (UL/CSA) and a rated current of 10 A (VDE) or 16 A (UL/CSA). The unit weight is 5.7 g.



Applications for this fuseholder carrier include household appliances and medical equipment. It meets IEC 60335-1 standards and is suitable for appliances with protection class I according to IEC 61140. The operating temperature range is -40 °C to 85 °C.

3101.7012 Quick Information

Product Type: Fuseholder Carrier
Series: FPG1
Canonical Name: Schurter Inc. FPG1/2/6 CARRIER 5X20 IP 40 Fuseholder
Subcategory: Fuseholder

3101.7012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3101.7012 Features

  • Designed for 5 x 20 mm fuse links.
  • IP40 degree of protection.
  • Rated for 250 VAC (VDE) operation.
  • Thermoplastic socket, UL 94V-0 rated.
  • Panel mount with fixing nut attachment.

3101.7012 Applications

  • Used in industrial control panels and equipment.
  • Suitable for power supplies and distribution systems.
  • Ideal for protection class I appliances.
  • Applicable in harsh environments with IP67 option.

3101.7012 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the Schurter 3101.7012 fuse carrier?

250VAC (VDE) or 500V (UL/CSA).

What is the standard package quantity?

100 pieces.

What is the operating temperature range?

-40°C to 85°C.

What type of fuse does it accept?

5x20mm fuse-link.

What is the protection class?

Class I per IEC 61140.

What is the ingress protection rating?

IP40 (normal) or IP67 (with cap).

What terminal types are available?

Solder or quick-connect 4.8x0.5mm.
