| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Rated Current | |
| Rated Voltage |

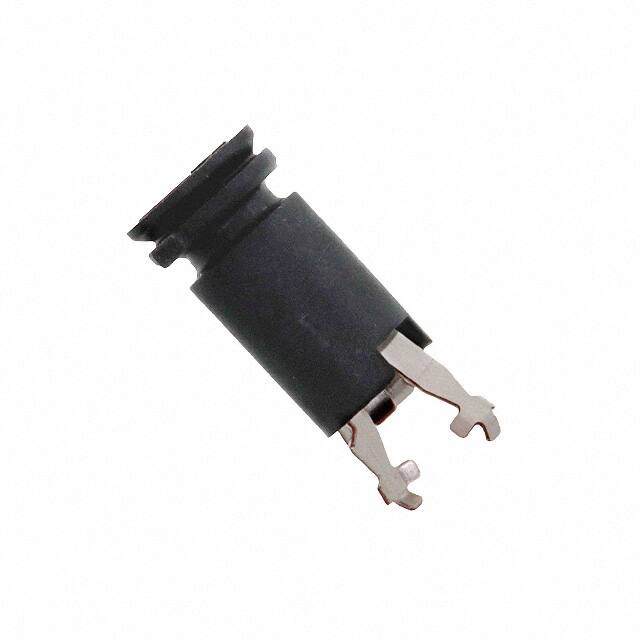

The Schurter 3101.7011 is a specialized fuse carrier engineered for secure mounting and electrical connection of 5x20 mm cylindrical fuses. Rated for 250 VAC operation under VDE standards and 10 A continuous current, this accessory ensures reliable circuit protection in industrial and commercial applications. The unit provides IP40 ingress protection against solid objects greater than 1mm, safeguarding internal connections from dust and accidental contact.
Designed for panel mounting or integration into larger control assemblies, it supports standard 5x20 fuse dimensions while maintaining compliance with international safety certifications including UL and CSA at higher voltage thresholds up to 500 V. This carrier facilitates easy fuse replacement and maintenance without disrupting system integrity.
Thermal performance specifies a 2.5 W power acceptance at 23 °C ambient temperature. Engineers should consult derating curves when operating in elevated temperature environments to ensure optimal current handling capacity. The component integrates seamlessly into modular fuse holder ecosystems, supporting standardized maintenance workflows across diverse electrical systems.
It is designed for 5x20 mm cylindrical fuses.
It is rated for 250 VAC under VDE standards and up to 500 V under UL/CSA standards.
The carrier supports 10 A continuous current per VDE standards and 16 A per UL/CSA standards.
Yes, it offers IP40 ingress protection against solid objects larger than 1mm.
It has a rated power acceptance of 2.5 W at an ambient temperature of 23 °C.
