| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Current Rating (Nominal @ UL/CSA) | |
| Current Rating (Nominal @ VDE) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Housing Material | |
| IP Rating | |
| Impulse Withstand Voltage | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Overvoltage Category | |
| Panel Thickness | |
| Pollution Degree | |
| Power Acceptance | |
| Protection Class | |
| Resistance to Soldering Heat | |
| Salt Mist Resistance | |
| Solderability | |
| Storage Temperature | |
| Storage Temperature Range | |
| Termination Style | |
| Torque (Fixing Nut) | |
| Vibration Resistance | |
| Voltage | |
| Voltage Rating (Nominal @ UL, CSA) | |
| Voltage Rating (Nominal @ VDE) | |
| Weight |

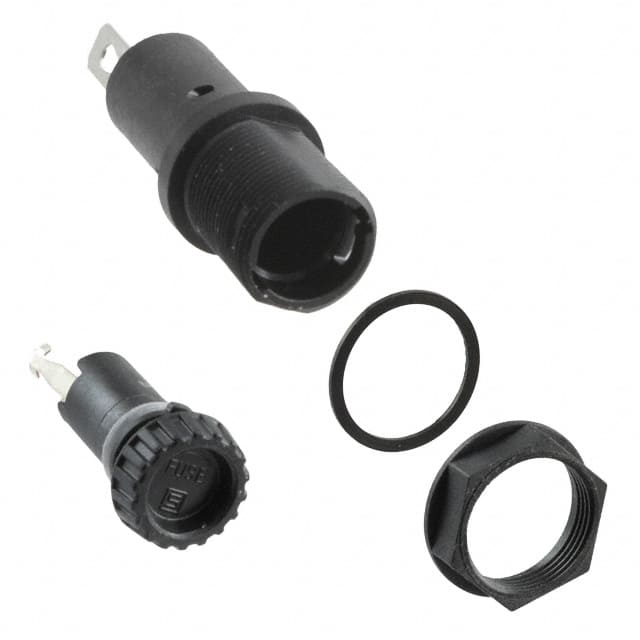

The Schurter 3101.0125 is a shock-safe fuseholder from the FPG2 series designed for 5mm x 20mm cartridge fuses. It is rated for 16A at 500V under UL/CSA and 10A at 250VAC under VDE standards. The holder accepts a power dissipation of 2.5W at 10A and 23°C ambient temperature.
The fuseholder features a panel mount design with rear-side installation using a fixing nut. It offers a choice of slotted cap or fingergrip for fuse access. The housing is made of thermoplastic with UL 94V-0 flammability rating, and the terminals are copper alloy with tin plating. Electrical characteristics include contact resistance ≤10mΩ, dielectric strength >3kV, and insulation resistance ≥10MΩ.
Environmental ratings include IP40 (finger protection) and IP67 (dust and temporary immersion) depending on cap configuration. The operating temperature range is -40°C to 85°C, with storage conditions of 0°C to 60°C and 70% maximum humidity. The holder is suitable for protection class I appliances and meets overvoltage category III with pollution degree 3 per IEC 60664-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.38 | $9.38 |
| 5+ | $7.78 | $7.78 |
| 10+ | $7.18 | $7.18 |
| 50+ | $5.95 | $5.95 |
| 100+ | $5.49 | $5.49 |
| 300+ | $4.82 | $4.82 |
| 500+ | $4.54 | $4.54 |
| 1,000+ | $4.18 | $4.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fuseholder is rated 16A under UL/CSA and 10A under VDE at 23°C ambient temperature.
Rated voltage is 500V (UL/CSA) and 250VAC (VDE).
Panel mount, rear-side installation with a fixing nut.
IP40 (finger protection) and IP67 (dust and temporary immersion) depending on cap configuration.
-40°C to 85°C.
5mm x 20mm cartridge fuses.
1.2 Nm.
