| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Degree of Protection | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Impulse Withstand Voltage | |
| Insulation Resistance | |
| Lead Style | |
| Material Socket | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Orientation | |
| Protection Class | |
| Rated Power Acceptance | |
| Storage Temperature | |
| Termination Style | |
| Voltage | |
| Voltage Rating (Nominal @ UL, CSA) | |
| Voltage Rating (Nominal @ VDE) | |
| Voltage Rating (Unspecified condition) | |
| Weight | |
| current_rating (Nominal @ UL/CSA) | |
| current_rating (Nominal @ VDE) |

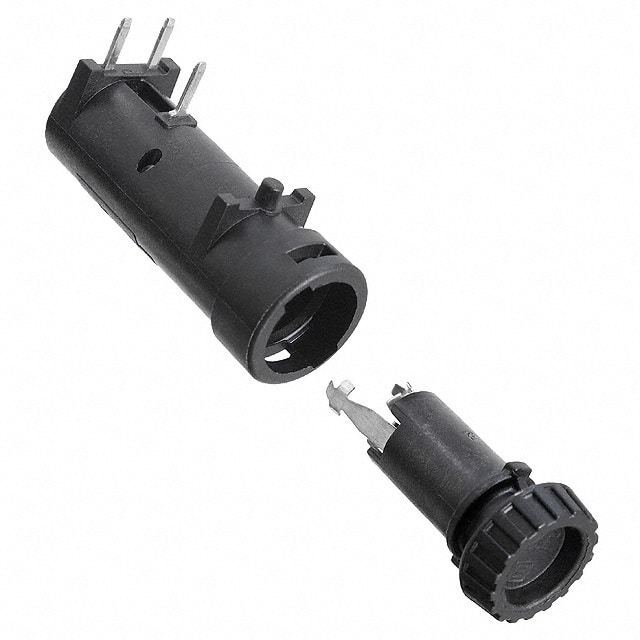

The Schurter 3101.0055 is a shock-safe fuseholder from the FPG5 series designed for 5mm x 20mm cartridge fuses. It features a closed construction with a horizontal PCB mounting orientation and PC pin solder terminals, making it suitable for applications requiring reliable circuit protection.
Electrically, the holder is rated at 10 A (VDE) with 250 VAC and 16 A (UL/CSA) with 500 V. It accepts a power dissipation of up to 2.5 W at 10 A (IEC) and offers a contact resistance of ≤10 mΩ. Dielectric strength exceeds 3 kV between live parts, and impulse withstand voltage exceeds 4 kV. Insulation resistance is ≥10 MΩ.
The operating temperature range is -40°C to 85°C, with a storage range of 0°C to 60°C and max 70% RH. The socket is molded from thermoplastic (UL 94V-0) and terminals are copper alloy with tin plating. The unit weighs 4.31 g and is protected to IP40.
Approved to VDE and UL/CSA safety standards, the fuseholder is suitable for protection class I equipment per IEC 61140. Typical applications include household appliances and medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
| 5+ | $4.93 | $4.93 |
| 10+ | $4.55 | $4.55 |
| 50+ | $3.78 | $3.78 |
| 100+ | $3.48 | $3.48 |
| 300+ | $3.06 | $3.06 |
| 500+ | $2.88 | $2.88 |
| 1,000+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A per VDE and 16 A per UL/CSA standards.
250 VAC (VDE) and 500 V (UL/CSA).
-40°C to 85°C ambient temperature.
IP40.
5mm x 20mm cartridge fuses.
Class I per IEC 61140.
Through-hole with PC pin termination, horizontal orientation.
