| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,300 pcs
|
3300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating (Amps) | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature Range | |
| Orientation | |
| Overvoltage Category | |
| Pollution Degree | |
| Protection Class | |
| Rated Power Acceptance | |
| Resistance to Soldering Heat | |
| Shock Safe Category | |
| Solderability | |
| Soldering Method | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Vibration Resistance | |
| Voltage | |
| Voltage Rating (Nominal @ UL, CSA) | |
| Voltage Rating (Nominal @ VDE) | |
| Weight | |
| current_rating (Nominal @ UL/CSA) | |
| current_rating (Nominal @ VDE) |

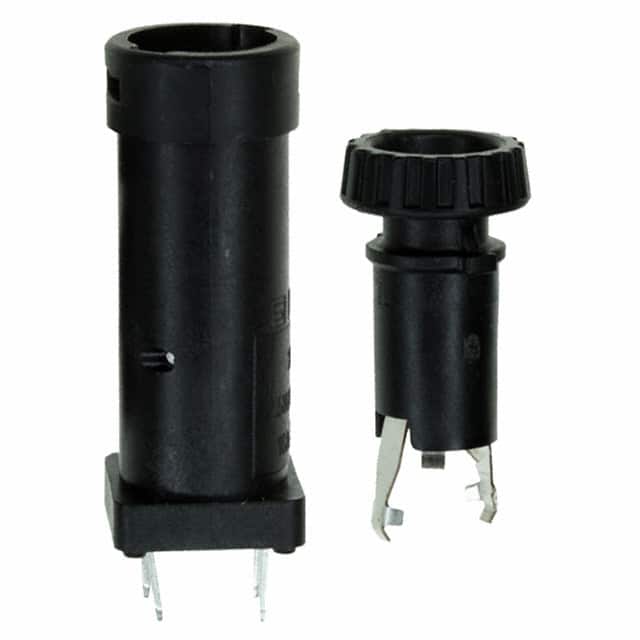

The Schurter 3101.0045 is a shock-safe fuseholder from the FPG4 series designed for 5mm x 20mm cartridge fuses. It features a vertical orientation with PC pin through-hole mounting, making it suitable for PCB integration.
It is rated for 16A at 500V (UL/CSA) and 10A at 250VAC (VDE). The fuseholder accepts a maximum power dissipation of 2.5W at 10A and 23°C ambient. Contact resistance is ≤10mΩ at 100mA, dielectric strength >3kV, and insulation resistance ≥10MΩ.
The body is made of black thermoplastic with UL 94V-0 flammability rating, and terminals are copper alloy with tin plating. It offers IP40 protection and is suitable for protection class I applications per IEC 61140. The operating temperature range is -40°C to 85°C.
Typical applications include household appliances and medical equipment. It complies with IEC 60127-6 and UL 4248-1 standards.
The fuseholder is rated 16A under UL/CSA and 10A under VDE at 23°C ambient.
It supports 500V under UL/CSA and 250VAC under VDE.
It accepts 5mm x 20mm cartridge fuses.
Through-hole mounting with vertical PC pin terminals.
-40°C to 85°C with a climatic category of 40/085/21.
Contact resistance ≤10mΩ at 100mA, dielectric strength >3kV between live parts.
Designed to IEC 60127-6, UL 4248-1, and CSA C22.2 no. 4248.1. Suitable for IEC/UL 62368-1 and IEC 60335-1 applications.
