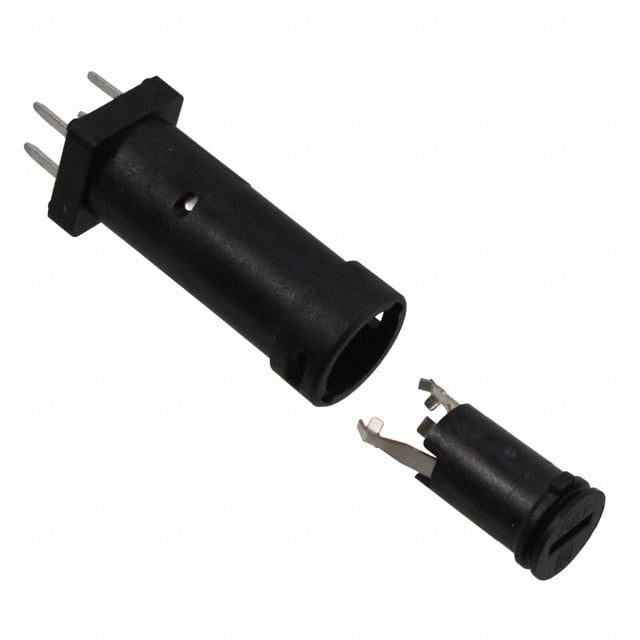

The Schurter 3101.0040 is a shock-safe cartridge fuseholder from the FPG4 series. It is designed for 5x20mm fuses and offers a rated current of 16A (UL/CSA) or 10A (VDE) at a rated voltage of 500V (UL/CSA) or 250VAC (VDE). The holder features a vertical orientation and through-hole PCB mounting with solder THT terminals.
Key electrical characteristics include a contact resistance of ≤10 mΩ at 100 mA, dielectric strength >3 kV, impulse withstand voltage >4 kV, and insulation resistance ≥10 MΩ. The fuseholder is rated for a power acceptance of 2.5W at 10A and 23°C. It is suitable for overvoltage category II and pollution degree 2 per IEC 60664-1.
Mechanically, the holder uses a thermoplastic socket with UL 94V-0 flammability rating and tin-plated copper alloy terminals. It provides IP40 degree of protection and operates over an ambient temperature range of -40°C to 85°C. The climatic category is 40/085/21 per IEC 60068-1. The unit weighs 4.66g and is designed for wave soldering with a solderability profile of 245°C/3 sec and resistance to soldering heat of 260°C/10 sec.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.40 | $5.40 |
| 5+ | $4.48 | $4.48 |
| 10+ | $4.14 | $4.14 |
| 50+ | $3.43 | $3.43 |
| 100+ | $3.16 | $3.16 |
| 300+ | $2.78 | $2.78 |
| 500+ | $2.62 | $2.62 |
| 1,000+ | $2.41 | $2.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fuseholder is rated for 16A (UL/CSA) and 10A (VDE).
The voltage rating is 500V (UL/CSA) and 250VAC (VDE).
It accepts 5mm x 20mm cartridge fuses.
Through-hole (THT) PCB mounting with solder terminals.
-40°C to 85°C.
IP40 degree of protection.
Yes, it is rated shock-safe category PC2.
