| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Admissible Ambient Temperature | |
| Climatic Category | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Degree of Protection | |
| Dielectric Strength | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Impulse Withstand Voltage | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Overvoltage Category | |
| Panel Thickness | |
| Pollution Degree | |
| Protection Class | |
| Rated Power Acceptance | |
| Resistance to Soldering Heat | |
| Resistance to Vibration | |
| SVHC Present | |
| Socket Material | |
| Solderability | |
| Soldering Method | |
| Storage Conditions | |
| Terminal Material | |
| Termination Style | |
| Unit Weight | |
| Voltage | |
| Voltage Rating |

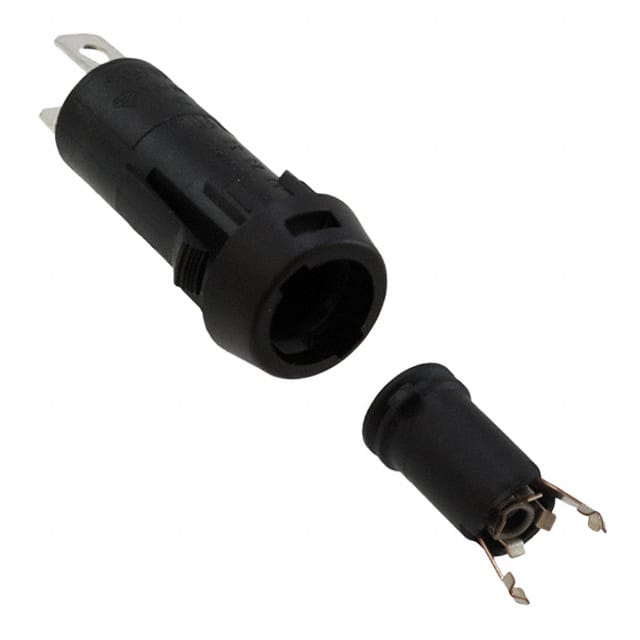

The Schurter 3101.0031 is a shock-safe fuseholder from the FPG3 series, designed for 5x20mm cartridge fuses. It features a panel mount snap-in attachment and offers solder lug or quick-connect 4.8mm x 0.5mm terminals. The holder is rated for 250VAC (VDE) and 500V (UL/CSA) with a current rating of 10A (VDE) and 16A (UL/CSA).
Electrical characteristics include a contact resistance of ≤10 mΩ, dielectric strength >3 kV, and impulse withstand voltage >4 kV. The insulation resistance is ≥10 MΩ at 500VDC. The holder is suitable for protection class I applications per IEC 61140 and has an IP40 degree of protection.
The socket is made of black thermoplastic rated UL 94V-0, and terminals are copper alloy with tin plating. The operating temperature range is -40°C to 85°C, with storage conditions of 0°C to 60°C and max 70% relative humidity. The unit weight is 5.3 grams.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
| 5+ | $4.93 | $4.93 |
| 10+ | $4.55 | $4.55 |
| 50+ | $3.78 | $3.78 |
| 100+ | $3.48 | $3.48 |
| 300+ | $3.06 | $3.06 |
| 500+ | $2.88 | $2.88 |
| 1,000+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 250 VAC (VDE) and 500 V (UL/CSA).
The current rating is 10 A (VDE) and 16 A (UL/CSA).
It accepts 5mm x 20mm cartridge fuses.
Panel mount with snap-in attachment for panel thickness 1.0 - 3.0 mm.
-40°C to 85°C.
IP40.
Solder lug or quick-connect 4.8mm x 0.5mm.
