3101.0015 Fuseholder for 5x20mm cartridge fuses, panel mount with solder lug termination. Rated for 16A at 400V (UL/CSA) and 10A at 250V (VDE).
Mfr Part #:

3101.0015

Available from 2 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
Fuseholder for 5x20mm cartridge fuses, panel mount with solder lug termination. Rated for 16A at 400V (UL/CSA) and 10A at 250V (VDE).
✓ Total Stock: 52 pcs
$ Price Range: $2.65 - $5.95

3101.0015 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
51 pcs
On Request
51 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

3101.0015 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Contact Resistance
Current Rating
Current Rating (Amps)
For Use With
Fuse Size
Fuse Type
Fuseholder Type
Insulation Resistance
Lead Style
Mounting Type
Number of Circuits
Panel Thickness
Storage Conditions
Termination Style
Voltage
Voltage Rating
View Similar Products (0)

3101.0015 Description

Short technical summary and product information.

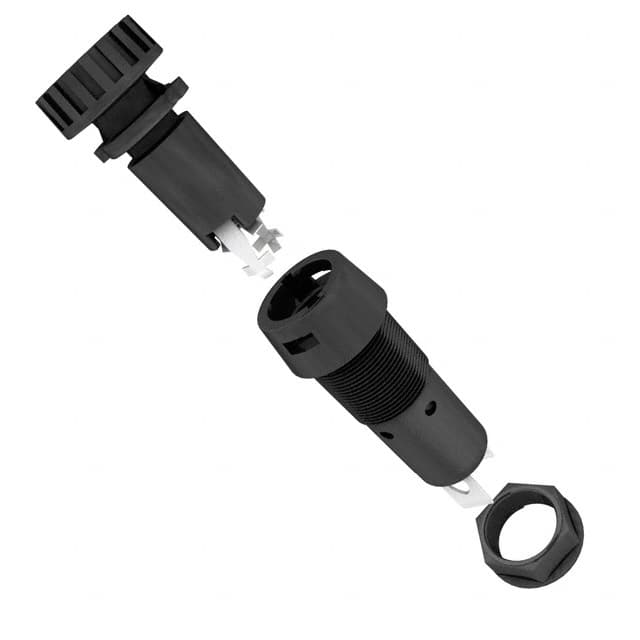

The Schurter 3101.0015 is a panel mount fuseholder designed for 5x20mm cartridge fuses. It features a solder lug termination and a black thermoplastic socket rated UL 94V-0. The fuseholder provides a shock-safe design (PC2) and offers degree of protection IP40/IP67, making it suitable for environments requiring dust and water ingress resistance.



Rated for 16A at 500V (UL/CSA) and 10A at 250V (VDE), this fuseholder can dissipate up to 2.5W at 10A (IEC @ 23°C). It supports an ambient temperature range of -40°C to 85°C and is classified under climatic category 40/085/21 per IEC 60068-1. The unit weight is 5.7g.



Terminals are copper alloy with tin plating, and the fixing nut torque should not exceed 1.2 Nm. The fuseholder is suitable for appliances with protection class I per IEC 61140 and meets overvoltage category III and pollution degree 3 per IEC 60664-1. Solderability and resistance to soldering heat are compliant with IEC 60068-2-20 standards.

3101.0015 Quick Information

Product Type: Fuseholder
Series: FPG1
Canonical Name: Schurter 3101.0015 Fuseholder for 5mm x 20mm Cartridge Fuse, 16A, 400V, Panel Mount
Subcategory: Fuseholders

3101.0015 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

3101.0015 Estimated Pricing

Qty Low High
1+ $5.95 $5.95
5+ $4.93 $4.93
10+ $4.55 $4.55
50+ $3.78 $3.78
100+ $3.48 $3.48
300+ $3.06 $3.06
500+ $2.88 $2.88
1,000+ $2.65 $2.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

3101.0015 Features

  • Accepts 5x20mm cartridge fuses.
  • Panel mount with solder lug termination.
  • Rated 16A at 400V (UL/CSA) and 10A at 250V (VDE).
  • IP40/IP67 degree of protection.
  • Shock-safe category PC2 design.

3101.0015 Applications

  • Used in household appliances.
  • Used in medical equipment.
  • Suitable for protection class I equipment.

3101.0015 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 3101.0015 fuseholder?

The current rating is 16A under UL/CSA and 10A under VDE.

What is the voltage rating of the 3101.0015 fuseholder?

The voltage rating is 500V under UL/CSA and 250VAC under VDE.

What fuse size does the 3101.0015 accept?

It accepts 5mm x 20mm cartridge fuses.

What is the mounting type for the 3101.0015?

Panel mount with front side screw-on attachment using a fixing nut.

What is the termination style of the 3101.0015?

Solder lug termination.

What is the degree of protection of the 3101.0015?

IP40 / IP67.

What is the admissible ambient temperature range?

-40°C to 85°C.
