| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| For Use With | |
| Illumination | |
| Mounting Type | |
| Shape | |
| Switch Type | |
| Terminal Type | |
| Weight |

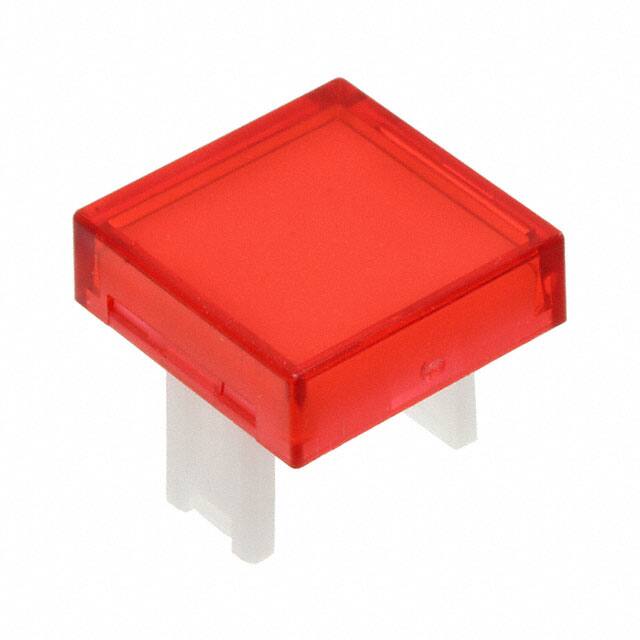

The EAO Series 31 offers a compact 16 mm pushbutton solution suitable for applications in machinery and automation, as well as panel building. This specific component, the 31-953.2, is an illuminated pushbutton cap with a square shape and a vibrant red color.
Designed for use with the EAO Series 31, this cap features a snap fit mounting type for easy installation. The front dimension is 18mm by 18mm, and it is compatible with a standard panel cutout diameter of 16mm. The cap is illuminated, indicating its function in user interfaces.
The Series 31 is versatile, incorporating functions such as indicators, pushbuttons, illuminated pushbuttons, and buzzers. This series is also designed for combined use with the EAO Series 51, offering flexibility in system design. The raised design of the Series 31 components ensures visibility and ease of operation.
While specific electrical characteristics like voltage and current ratings are detailed in the datasheet for the complete actuator, this cap is a key component for building illuminated pushbutton assemblies. The IP40 rating indicates protection against solid objects greater than 1mm and from water spray.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pushbutton cap is red.
The pushbutton cap is square.
The mounting type is snap fit.
The pushbutton cap is for the 31 Series.
The front dimension is 15.30mm L x 15.30mm W.
The IP rating is IP40.
The voltage ratings are 10-35 VAC / 10-50 VDC for U1, and 35-55 VAC / 35-75 VDC for U2.
