31-151.025 The EAO 31-151.025 is a pushbutton switch with a 5A (AC) current rating and 250V voltage rating. It features a DPST-NO/NC circuit and panel mount.
Mfr Part #:

31-151.025

Available from 1 distributors
Mfr Name: EAO
EAO
The EAO 31-151.025 is a pushbutton switch with a 5A (AC) current rating and 250V voltage rating. It features a DPST-NO/NC circuit and panel mount.
✓ Total Stock: 4 pcs
$ Price Range: $0.75

31-151.025 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

31-151.025 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Current Rating (Amps)
Ingress Protection
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Type
Voltage Rating
View Similar Products (0)

31-151.025 Description

Short technical summary and product information.

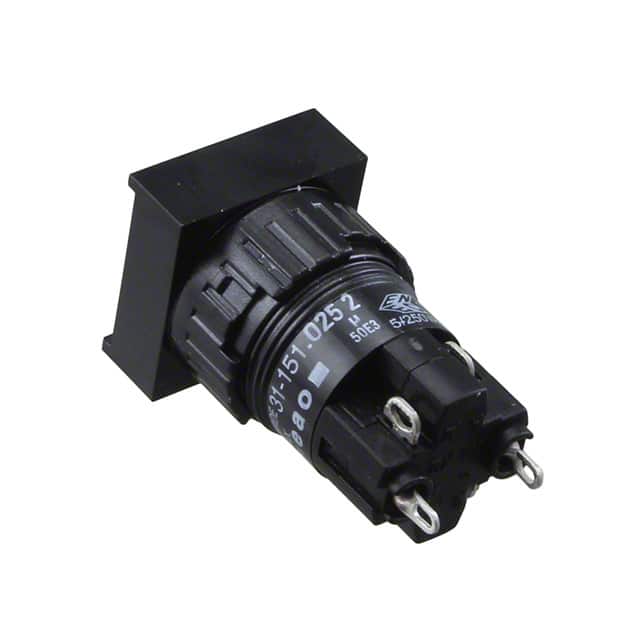

The EAO Series 31 pushbutton switch, part number 31-151.025, is designed for applications requiring reliable switching. This component features a DPST-NO/NC circuit configuration, allowing for both normally open and normally closed contacts.



With a current rating of 5A (AC) and a voltage rating of 250V, it is suitable for various industrial and automation tasks. The switch has an operating temperature range of -25°C to 55°C and an Ingress Protection rating of IP40, offering protection against solid objects larger than 1mm and from water spray.



The mounting type is Panel Mount, Front, with a panel cutout diameter of 16.00mm. The termination style is Solder Lug, facilitating secure connections. The actuator type is described as Square, Button, but it is not included with this specific part number, requiring separate selection.



This series is especially suited for applications in Machinery and Automation and Panel building segments. It is compatible with PCB mounting when using an adaptor and is ideally suited for combined use with Series 51.

31-151.025 Quick Information

Product Type: Pushbutton Switch
Series: Series 31
Canonical Name: EAO Series 31 Pushbutton Switch
Subcategory: Pushbutton Switch

31-151.025 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

31-151.025 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

31-151.025 Features

  • DPST-NO/NC circuit configuration.
  • Rated for 5A (AC) current.
  • Operates at 250V voltage.
  • Panel mount with 16mm cutout.
  • Solder lug termination style.

31-151.025 Applications

  • Used in industrial control panels
  • Suitable for automation systems
  • Ideal for machinery control switches
  • Panel mounting in various environments

31-151.025 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current and voltage rating for the EAO 31-151.025?

The EAO 31-151.025 has a current rating of 5A (AC) and a voltage rating of 250V.

What type of circuit does the EAO 31-151.025 pushbutton switch use?

The EAO 31-151.025 pushbutton switch uses a DPST-NO/NC circuit.

What are the operating temperature limits for this switch?

The operating temperature range for this switch is -25°C to 55°C.

What is the panel cutout size required for the EAO 31-151.025?

The panel cutout dimensions required are 16.00mm in diameter.

What is the ingress protection rating of the EAO 31-151.025?

The EAO 31-151.025 has an ingress protection rating of IP40.
