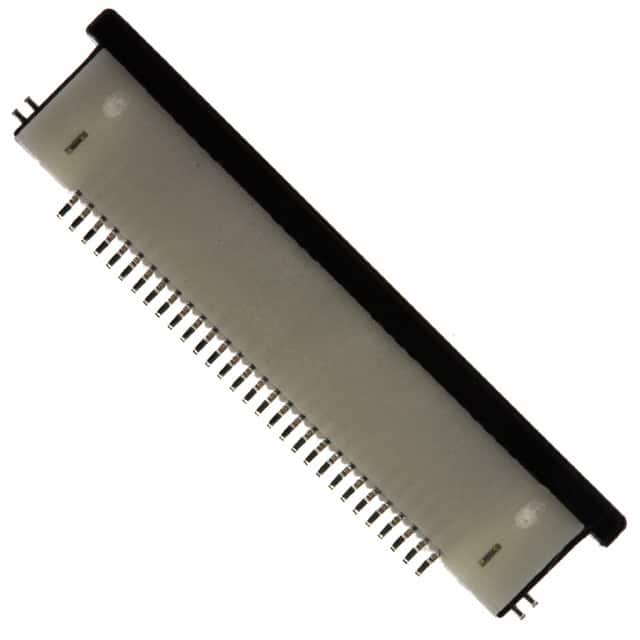

The 30FLZ-RSM2-TB(LF)(SN) is a 30-position FFC/FPC connector from JST Manufacturing with a 0.5mm pitch. It features a surface mount, right angle mounting style and a bottom contact configuration with Zero Insertion Force (ZIF). The connector includes a slide lock for secure cable retention and supports tapered cable ends with a maximum FFC/FPC thickness of 0.30mm.
Rated for 50V and 0.5A per contact, this connector offers a contact resistance of 30mΩ initial and 50mΩ after environmental tests. Insulation resistance is 100MΩ minimum, and withstanding voltage is 500VAC. The operating temperature range is -25°C to 85°C. Housing and actuator are made of polyamide (PA6T/Nylon 6T) with UL94 V-0 flammability rating. Contact material is phosphor bronze with tin finish.
Designed for automated assembly with solder retention features, this connector is suitable for compact PCB layouts requiring reliable FFC/FPC interconnections.
This connector has 30 positions.
The pitch is 0.50mm.
Surface Mount, Right Angle.
50V.
0.5A per contact.
Yes, it has a slide lock.
-25°C to 85°C.
