| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,200 pcs
|
3200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Rectified Forward Current (Maximum @ 50% duty cycle, rectangular wave, Tc = 124 °C) | |
| Current | |
| Diode Configuration | |
| Forward Voltage (Typical/Maximum @ IF = 15 A, pulse, TJ = 125 °C) | |
| Forward Voltage (Typical/Maximum @ IF = 15 A, pulse, TJ = 25 °C) | |
| Forward Voltage (Typical/Maximum @ IF = 30 A, pulse, TJ = 125 °C) | |
| Forward Voltage (Typical/Maximum @ IF = 30 A, pulse, TJ = 25 °C) | |
| Junction Capacitance (Per Leg) @ VR = 5 V, f = 1 MHz | |
| Junction Temperature | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Non-Repetitive Surge Current (Per Leg) | |
| Operating Temperature | |
| Package / Case | |
| Peak Repetitive Reverse Voltage | |
| Reverse Current (Typical/Maximum @ VR = rated VR (45 V), TJ = 125 °C) | |
| Reverse Current (Typical/Maximum @ VR = rated VR (45 V), TJ = 25 °C) | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Thermal Resistance (Junction to Case) (Typical @ DC operation) | |
| Thermal Resistance, Case to Heatsink | |
| Voltage | |
| Voltage Rate of Change | |
| Weight |
The 30CPQ045 is a Schottky rectifier diode array from SMC Diode Solutions, configured as a 1 pair common cathode. It is rated for a peak repetitive reverse voltage of 45V and an average rectified forward current of 30A per device (15A per leg). The device offers a low forward voltage drop of typically 0.52V at 15A and 25°C, and a maximum of 0.54V.
This diode array is designed for high-frequency operation and features a guard ring for enhanced ruggedness and long-term reliability. It can operate at junction temperatures up to 150°C and is capable of handling non-repetitive surge currents up to 318A per leg. The part is Pb-free as per the datasheet.

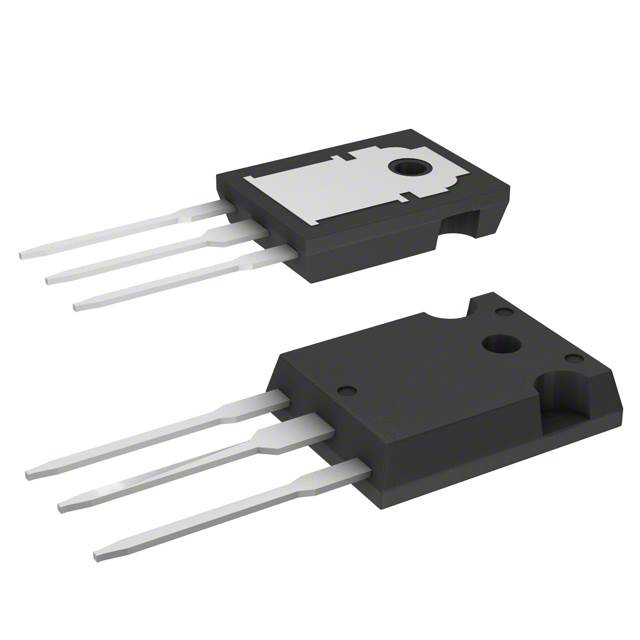

The 30CPQ045 is housed in a through-hole TO-247-3 package (supplier device package TO-247AD) and weighs approximately 6.28 grams. Typical applications include switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.15 | $3.15 |
| 25+ | $1.75 | $1.75 |
| 100+ | $1.41 | $1.41 |
| 500+ | $1.14 | $1.14 |
| 1,000+ | $1.05 | $1.05 |
| 2,000+ | $0.98 | $0.98 |
| 5,000+ | $0.90 | $0.90 |
| 10,000+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum peak repetitive reverse voltage is 45V.
The average rectified forward current is 15A per leg and 30A per device at Tc=124°C with a 50% duty cycle rectangular wave.
At 15A and 25°C, the typical forward voltage drop is 0.52V with a maximum of 0.54V.
The 30CPQ045 is available in a through-hole TO-247-3 package (TO-247AD).
The operating junction temperature range is -55°C to +150°C.
