| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Body Size | |
| Built in Switch | |
| Bushing Length | |
| Bushing Thread | |
| Lead Style | |
| Linearity | |
| Mechanical Rotation | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Resistance (Ohms) | |
| Resistance Value | |
| Resistive Material | |
| Rotation | |
| Rotational Life | |
| Shaft Diameter | |
| Shaft Length | |
| Taper | |
| Termination Style | |
| Tolerance | |
| Working Voltage (Max) |

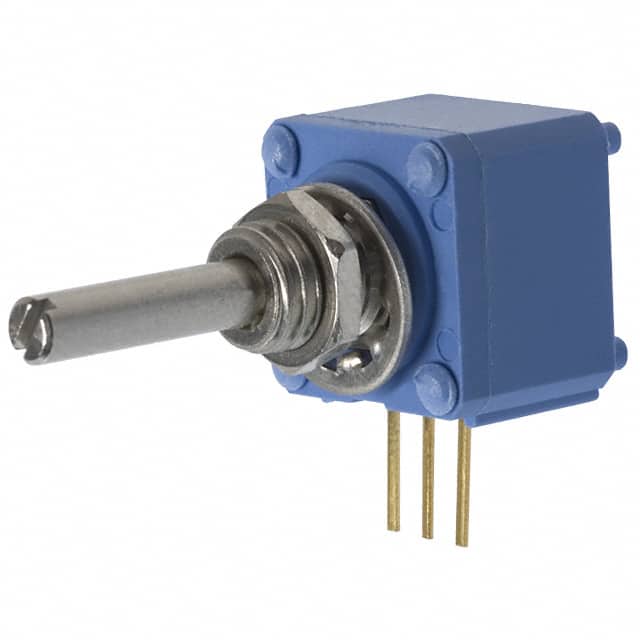

The Honeywell 308 Series is a low-cost, conductive plastic potentiometer designed for industrial applications. This model, the 308NPC100K, offers a resistance value of 100 kOhm with a tolerance of ±10% and a linear taper.
With a power rating of 0.5W, it is suitable for manual controls and other general-purpose applications. The potentiometer features PC terminals for direct board mounting and a panel mount design for user interface integration. Its operating temperature range is -40°C to 120°C, and it has a rotational life of 50,000 cycles.
The mechanical specifications include a 1/4-32 bushing thread, a 0.750" (19.05mm) actuator length, and a 0.125" (3.18mm) shaft diameter. The body is a 12.7 mm [0.5 in] square. This potentiometer is designed for applications requiring reliable manual control.
Typical applications include manual controls, medical equipment, and telecommunications. The robust nickel-plated brass shaft and bushings ensure durability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 kOhm.
The power rating is 0.5W.
The tolerance is ±10%.
It has a linear taper.
The operating temperature range is -40°C to 120°C.
It is designed for panel mounting.
It uses PC Pins for termination.
