Mfr Part #:

30775

Mfr Name: Vicor

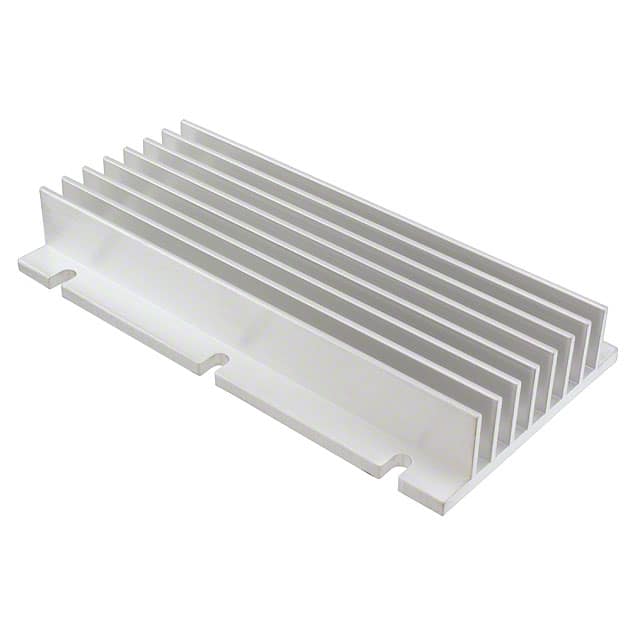

The Vicor 30775 is a heat sink designed for VI-200 modules, featuring a 0.7" horizontal height and aluminum construction. It offers RoHS3 compliance for environmental considerations.

Stock on Request

30775 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Vicor
Accessory Type	Heat Sink
Finish	Clear
For Use With	VICOR VI-200S-Sized Modules
Material	Aluminum, 6063-T5
Mounting Type	Through Hole

View Similar Products (0)

30775 Description

Short technical summary and product information.

This Vicor 30775 heat sink is an accessory component designed to manage thermal dissipation for Vicor VI-200 series power modules. Constructed from aluminum alloy 6063-T5 with a clear finish, it provides effective heat transfer.

The heat sink has a typical height of 0.70 inches (17.78 mm) and features 8 fins with a typical spacing of 0.125 inches. The material is specified as aluminum 6063-T5, and the finish is clear, RoHS compliant, and chromium-free.

Designed for use with VICOR VI-200S-Sized Modules, this component plays a crucial role in maintaining optimal operating temperatures for power electronics, ensuring reliability and performance. Its construction adheres to RoHS3 compliance standards.

30775 Quick Information

Product Type: Heat Sink

Series: VI-200

Canonical Name: Vicor 30775 Heat Sink

Subcategory: Heat Sink

30775 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

30775 Features

Aluminum 6063-T5 construction for effective heat dissipation.
0.70 inch typical horizontal height.
8 fins with 0.125 inch typical spacing.
Clear finish, RoHS3 compliant.
Designed for Vicor VI-200S-Sized Modules.

30775 Applications

Essential for VI-200 module thermal management.
Enhances power system reliability.
Suitable for high-performance applications.
Ensures stable operating temperatures.

30775 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the height of the Vicor 30775 heatsink?

The heatsink has a height of 0.70 inches (17.78 mm).

What material is the Vicor 30775 heatsink made of?

It is made of aluminum 6063-T5.

How many fins does the Vicor 30775 heatsink have?

It has 8 fins.

What is the fin spacing on the Vicor 30775 heatsink?

The fin spacing is 0.125 inches.

What finish does the Vicor 30775 heatsink have?

It has a clear finish.
