| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Height | |
| Mounting Type | |
| Tape & Reel |

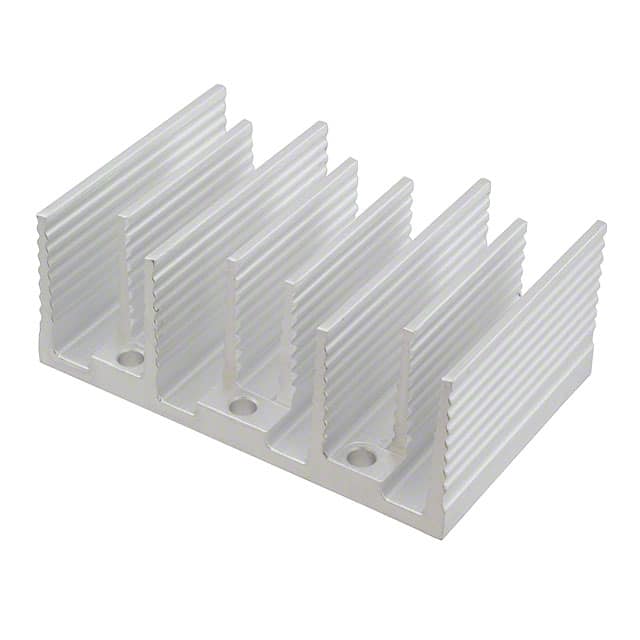

The Vicor 30725 is a dedicated heat sink accessory for Vicor micro-sized power modules, providing essential thermal management in a compact footprint. Constructed from extruded aluminum 6063-T51, it offers a good balance of thermal conductivity and mechanical strength. The heat sink features a clear chromate finish that is RoHS compliant (per CST-0001) and meets MIL-DTL-5541 Type II Class 1A or 3 requirements for corrosion resistance.
With a low profile height of 0.9 inches, a length of 2.280 inches, and a width of 0.910 inches, the 30725 is designed for through-hole mounting, ensuring a secure mechanical attachment to the module or board. The fin pattern is optimized for low-flow air cooling environments, as indicated by the datasheet designation. All critical dimensions are controlled for consistent performance.
Compliance with RoHS is confirmed through the datasheet, making it suitable for environments requiring restricted substance control. The heat sink is also manufactured under Vicor's quality standards, with clear notes on material, finish, and dimensional tolerances. No thermal resistance or weight data is provided in the available documentation.
Yes, according to the datasheet, it is RoHS compliant per CST-0001.
Aluminum 6063-T51.
Clear finish, chromium free or trivalent chromium per MIL-DTL-5541, RoHS compliant.
Height: 0.9 inches, Length: 2.280 inches, Width: 0.910 inches.
Through-hole mounting.
Vicor micro-sized modules.
