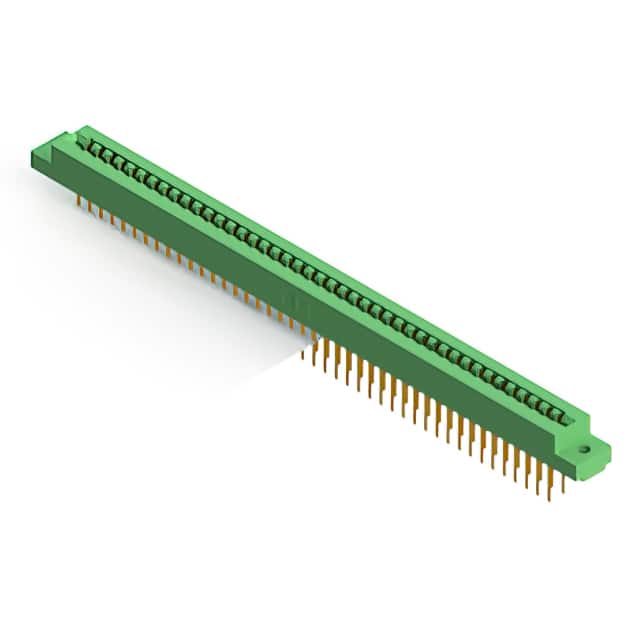

The Edac 307-086-542-202 is a 307 series dual readout card edge connector featuring 86 contacts arranged as 43 positions across two rows. It is designed for 0.156" (3.96mm) contact pitch and accepts PCBs with thickness from 0.054" to 0.070" (1.37mm to 1.78mm). The half-bellows contacts are made of copper alloy with gold plating on the mating area and tin plating on the tails, with nickel underplating. The insulator is green thermoplastic polyester, UL 94V-0 rated.
This connector is rated for 5A continuous current per contact, with a maximum contact resistance of 10 mΩ, dielectric withstanding voltage of 1800 V AC rms, and minimum insulation resistance of 5000 MΩ. The operating temperature range is -40°C to +105°C. Insertion force is 4.45 N (16 oz) maximum per contact pair, and withdrawal force is 0.28 N (1 oz) minimum, tested with specified gauge thicknesses.
The connector features flush mount, top opening, unthreaded flange holes with 0.128" (3.25mm) diameter for mounting. Termination is through hole wire wrap, suitable for solderless wrapped-wire connections. It is intended for use in electronic assemblies requiring reliable edge card connections, such as backplanes, memory modules, and I/O expansion boards.
| Qty | Low | High |
|---|---|---|
| 25+ | $18.09 | $18.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 43 positions (dual row, 86 total contacts).
The contact pitch is 0.156" (3.96mm).
The current rating is 5 A per contact.
The mounting type is through hole with wire wrap termination.
The operating temperature range is -40°C to +105°C.
The dielectric withstanding voltage is 1800 V AC rms.
The maximum contact resistance is 10 mΩ.
