| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Failure Rate | |
| Gender | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Read Out |

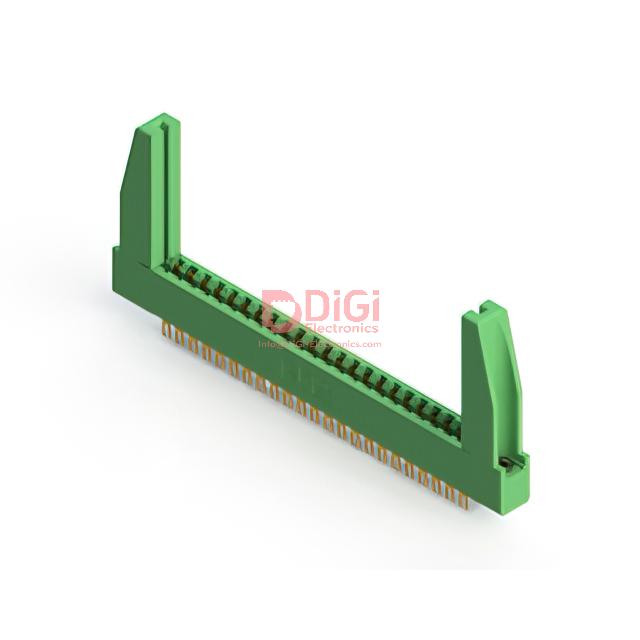

This CONNECTRAL 307-086-540-202 is a card edge connector designed for various electronic applications. It offers 46 positions arranged in two rows, with a pitch of 0.156 inches (3.96mm).
The connector is female and features a dual-edge design, suitable for specific board-to-board or edge-to-edge connections. The card thickness compatibility ranges from 0.054" to 0.070" (1.37mm to 1.78mm).
Designed for panel mounting, this connector provides a secure and accessible connection point. It is specified as RoHS3 Compliant and has an MSL rating of 1, indicating unlimited moisture sensitivity. The REACH status is unaffected.
Key specifications include 46 positions, 2 rows, and a 3.96mm pitch. The series is identified as 305, and the product status is active.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The CONNECTRAL 307-086-540-202 connector has 46 positions.
The pitch of the CONNECTRAL 307-086-540-202 connector is 3.96mm.
This connector supports card thicknesses from 1.37mm to 1.78mm.
The CONNECTRAL 307-086-540-202 is designed for panel mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
