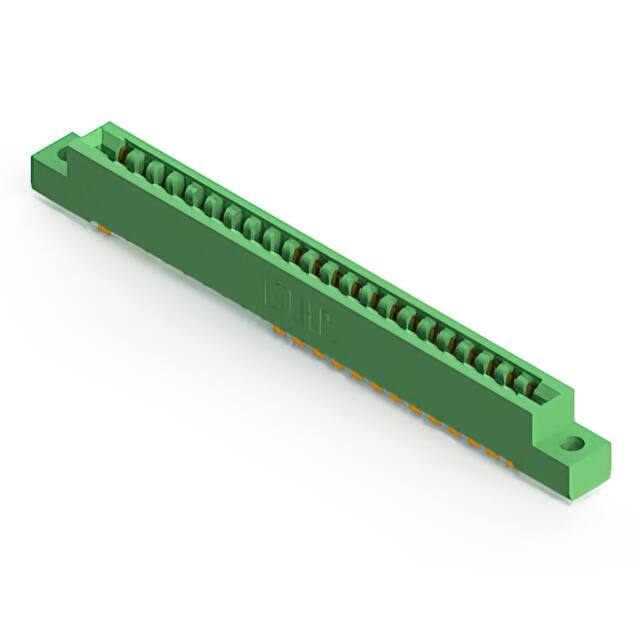

The EDAC 307-044-500-202 is a card edge connector from the 307 series, designed for mating with a dual-sided printed circuit board. It accommodates a card thickness of 0.054" to 0.070" (1.37mm to 1.78mm) and features 22 positions arranged in dual rows for a total of 44 contacts.
Electrical specifications include a 5A current rating, 10mΩ maximum contact resistance, 1800V AC rms dielectric withstanding voltage, and 5000MΩ minimum insulation resistance. The contacts are made of copper alloy with gold plating on the mating area and tin plating on the tails, with nickel underplating.
Mechanically, the connector uses through hole mounting with wire wrap termination. The flange feature includes flush mount, top opening, unthreaded 0.128" diameter holes. Insertion force is 16 oz (4.45 N) maximum per contact pair, and withdrawal force is 1 oz (0.28 N) minimum. The connector is RoHS3 compliant and operates over -40°C to +105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.30 | $6.30 |
| 10+ | $5.35 | $5.35 |
| 25+ | $5.02 | $5.02 |
| 50+ | $4.78 | $4.78 |
| 100+ | $4.55 | $4.55 |
| 250+ | $4.27 | $4.27 |
| 500+ | $4.06 | $4.06 |
| 1,000+ | $3.87 | $3.87 |
| 2,500+ | $3.63 | $3.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 22 positions arranged in dual rows, providing 44 total contacts.
The pitch is 0.156" (3.96mm).
The current rating is 5A.
The dielectric withstanding voltage is 1800V AC rms at sea level between adjacent contacts.
It uses through hole mounting with wire wrap termination.
The operating temperature range is -40°C to +105°C.
Yes, it is RoHS3 compliant as verified in the datasheet.
