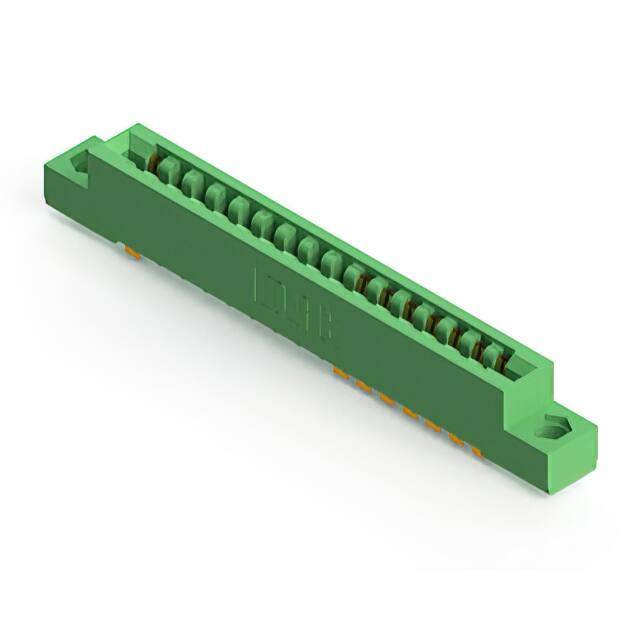

The Edac 307-032-500-204 is a dual readout card edge connector from the 307 Series, designed for use with 0.062" nominal thickness PCBs. It offers 16 positions in a dual row configuration, totaling 32 contacts on a 0.156" (3.96mm) contact spacing. The connector is rated for 5A current, with a maximum contact resistance of 10 mΩ and dielectric withstanding voltage of 1800 V AC rms. The operating temperature range is -40°C to 105°C. Contacts are made from copper alloy with gold plating on the mating area and tin plating on tails, featuring a nickel underplate. The insulator is green thermoplastic polyester, UL 94V-0 rated. Mounting is through hole with solder eyelet termination. The connector supports flush mount, top opening, and unthreaded 0.156" diameter mounting holes. It is designed for dual readout applications, accepting a PCB thickness range of 0.054" to 0.070".
| Qty | Low | High |
|---|---|---|
| 25+ | $10.08 | $10.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions (32 contacts, dual row).
0.156" (3.96mm).
5A.
Through hole with solder eyelet termination.
-40°C to 105°C.
RoHS3 compliant (unverified).
Gold plating on mating area, 10µin thickness.
