| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AWG Range | |
| Automotive Grade | |
| Conductor Cross Section (Minimum/Maximum @ solid) | |
| Conductor Cross Section (Minimum/Maximum @ stranded) | |
| Connection Standard | |
| Current | |
| Customs Tariff | |
| Flammability Class | |
| GTIN | |
| Housing Color | |
| Industrial Grade | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Nominal Current IN | |
| Nominal Voltage UN | |
| Number of Levels | |
| Number of Positions | |
| Open Side Panel | |
| Pollution Degree | |
| Rated Current (Maximum @ with 6 mm² conductor cross section) | |
| Rated Current (Unspecified condition) | |
| Rated Surge Voltage | |
| Standard Package Quantity | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Wire Gauge or Range | |
| height (@ on NS 35/15) | |
| height (@ on NS 35/7.5) |

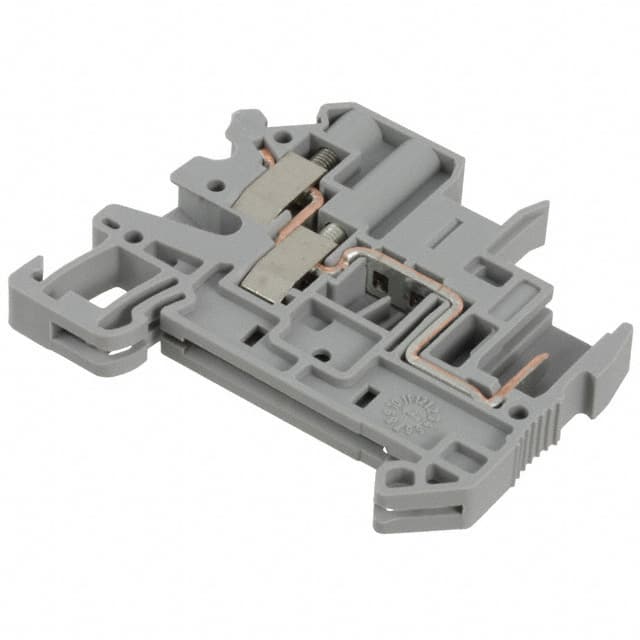

The Phoenix Contact 3060267 is a UT 4-TWIN/1P screw terminal block designed for DIN rail mounting. It features 3 connections in a single level, with a width of 6.2 mm and a length of 55.7 mm. The terminal block accepts solid or stranded conductors from 0.14 mm² to 6 mm² (26-10 AWG).
Electrical ratings include a nominal current of 32 A and nominal voltage of 500 V, with a rated surge voltage of 6 kV (pollution degree 3, surge voltage category III, insulating material group I). The connection complies with IEC 61984.
The housing is made of gray polyamide (PA) with a flammability rating of UL94 V0. The open side panel allows for bridging. Weight per piece is 0.013135 kg. Standard package quantity is 50 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.77 | $1.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current IN is 32 A, with a maximum load current of 32 A when using a 6 mm² conductor.
The nominal voltage UN is 500 V, with a rated surge voltage of 6 kV.
It has 3 positions (connections) in a single level.
It mounts on DIN rails, specifically NS 35/7.5 or NS 35/15.
It accepts solid or stranded conductors from 0.14 mm² to 6 mm², equivalent to 26-10 AWG.
