| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Turns | |
| Operating Temperature Range | |
| Power (Watts) | |
| Resistance | |
| Resistive Material | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Torque | |
| Weight |

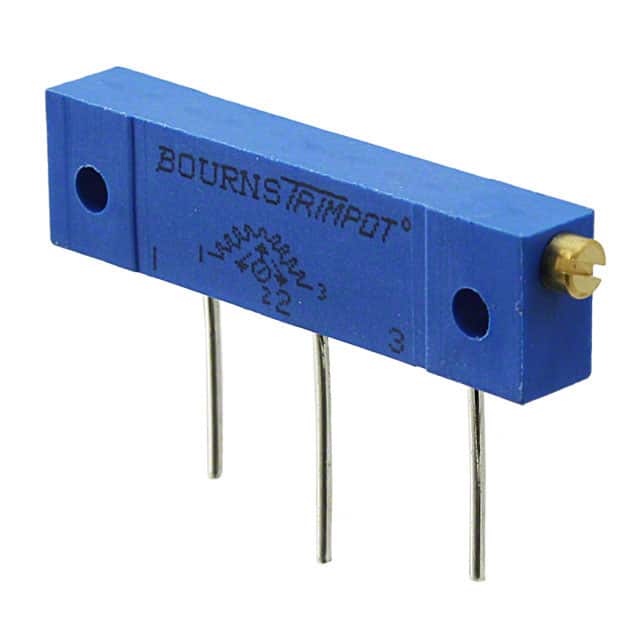

The Bourns 3059Y-1-104LF is a multiturn cermet trimmer potentiometer designed for industrial applications. It offers a resistance value of 100 kΩ with a standard tolerance of ±10% and a power rating of 1W at 70°C.
This trimmer features 22 turns for precise adjustment and a side adjustment slot. The resistive material is cermet, ensuring stability and reliability across its operating temperature range of -55°C to +150°C. The terminals are solderable printed circuit pins, suitable for through-hole PCB mounting.
Environmental testing includes humidity resistance per MIL-STD-202 Method 106, vibration resistance up to 20G, and shock resistance up to 50G. The component is also rated for U.L. 94V-0 flammability.
Key electrical characteristics include an insulation resistance of 1,000 megohms min. at 500 VDC and a dielectric strength of 900 VAC at sea level. The physical dimensions are approximately 0.315" x 0.190" face.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3059Y-1-104LF trimmer potentiometer has a resistance value of 100 kΩ.
The power rating is 1W at 70°C.
The temperature coefficient is ±100 ppm/°C.
This trimmer potentiometer has 22 turns for adjustment.
It is designed for through-hole mounting with PC pins.
