| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conductor Cross Section (Stranded) (Minimum/Maximum) | |
| Conductor Cross Section AWG (Minimum/Maximum) | |
| Conductor Cross Section Solid (Minimum/Maximum) | |
| Connection Method | |
| Current | |
| Features | |
| Height | |
| Housing Color | |
| Inflammability Class acc. to UL 94 | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Maximum Load Current | |
| Mounting Type | |
| Nominal Current IN | |
| Nominal Voltage UN | |
| Number of Levels | |
| Number of Positions | |
| Pack Quantity | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Screw Thread | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Tightening Torque Max | |
| Tightening Torque Min | |
| Type | |
| Voltage | |
| Width | |
| Wire Gauge or Range |

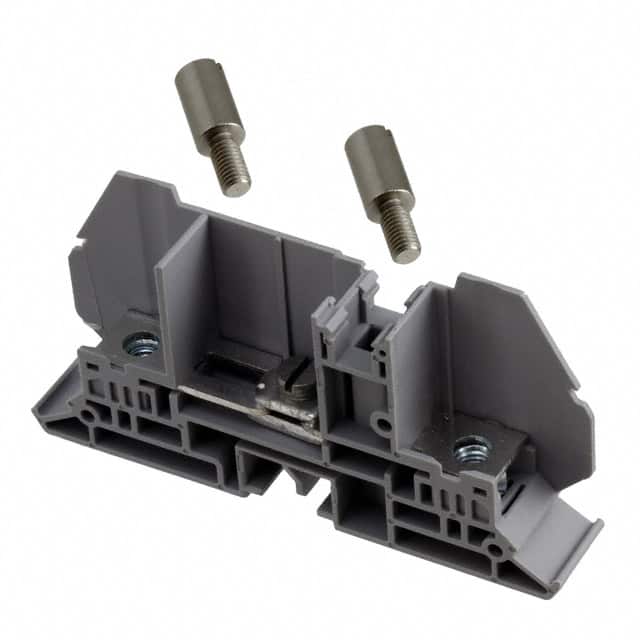

The Phoenix Contact 3058334 is a feed-through terminal block with NEMA open construction, designed for bolt connection wiring. It features 2 positions with a 13.0 mm pitch and a disconnect point, making it suitable for applications requiring a visible disconnect. The terminal block is rated for a continuous current of 45 A and a voltage of 600 V, with a maximum load current of 50 A (with 10 mm² conductor) and a nominal voltage of 800 V when the disconnect point is open. The connection uses an M5 screw with a tightening torque of 2 to 2.2 Nm, accommodating solid and stranded conductors from 0.1 mm² to 10 mm² (AWG 26 to 8). The housing is made of gray PA (polyamide) with a flammability rating of V0 per UL 94. Dimensions are 13 mm wide, 79.9 mm long, and 39.7 mm high. It is rated for pollution degree 3, surge voltage category III, with an 8 kV rated surge voltage. The terminal block is supplied in a pack of 50 pieces and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 50+ | $3.11 | $3.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
13.0 mm.
45 A.
600 V.
Direct Mount.
Bolt connection with M5 screw.
0.1-10 mm² (solid and stranded), AWG 26-8.
