| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Stranded) (Minimum/Maximum) | |
| Conductor Cross Section Solid (Minimum/Maximum) | |
| Connection Method | |
| Current | |
| Features | |
| Flammability Class | |
| Height (@ NS 35/15 DIN rail) | |
| Height (@ NS 35/7.5 DIN rail) | |
| Housing Color | |
| Industrial Grade | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum Load Current | |
| Mounting Type | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Pack Quantity | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Screw Thread | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Tightening Torque (Minimum/Maximum) | |
| Type | |
| UL Certification | |
| Voltage | |
| Width | |
| Wire Gauge (AWG) (Minimum/Maximum) | |
| Wire Gauge or Range |

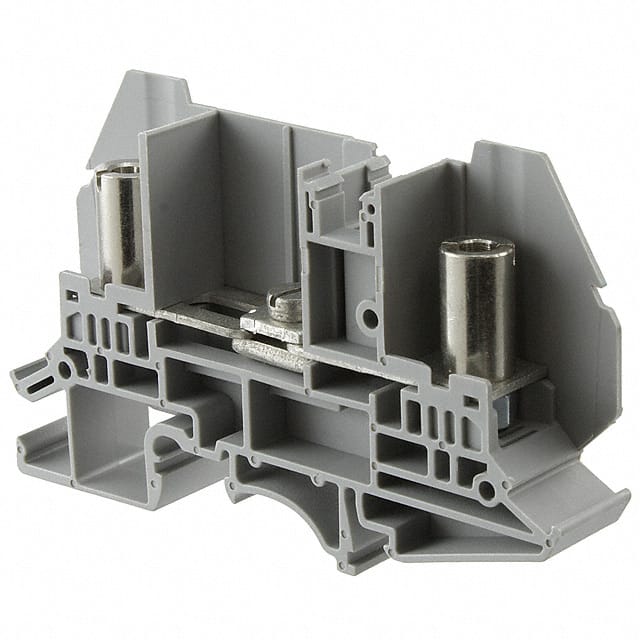

The Phoenix Contact RSC 5-T (3058172) is a 2-position feed-through terminal block designed for industrial control and power distribution applications. It features a bolt connection method with an M5 screw thread and a tightening torque range of 2.0 to 2.2 Nm.
Electrical ratings include a nominal current of 50 A (maximum load current of 50 A with 10 mm² conductor cross section) and a nominal voltage of 800 V (with open 630 V disconnect point). The rated surge voltage is 8 kV with pollution degree 3 and surge voltage category III, ensuring robust performance in industrial environments.
The terminal block accepts solid or stranded conductors from 0.1 to 10 mm² (26 to 8 AWG). It is housed in a gray PA (polyamide) insulating material with UL 94 V0 flammability class. The mounting type is direct mount, with dimensions of 13 mm width, 79.9 mm length, and heights of 49.8 mm (NS 35/7.5 rail) or 57.3 mm (NS 35/15 rail).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.44 | $2.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions.
The nominal current is 50 A. The maximum load current is also 50 A with a 10 mm² conductor cross section.
The nominal voltage is 800 V with an open 630 V disconnect point. The rated surge voltage is 8 kV.
It is a direct mount terminal block, suitable for DIN rail mounting (NS 35/7.5 or NS 35/15).
