| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Certifications | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section (Stranded) | |
| Connection Standard | |
| Current | |
| Flammability Class | |
| Height | |
| Industrial Grade | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Maximum Load Current | |
| Mounting Type | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Open Side Panel | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Screw Thread | |
| Standard Package Quantity | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Voltage | |
| Width | |
| Wire Gauge Range | |
| Wire Gauge or Range |

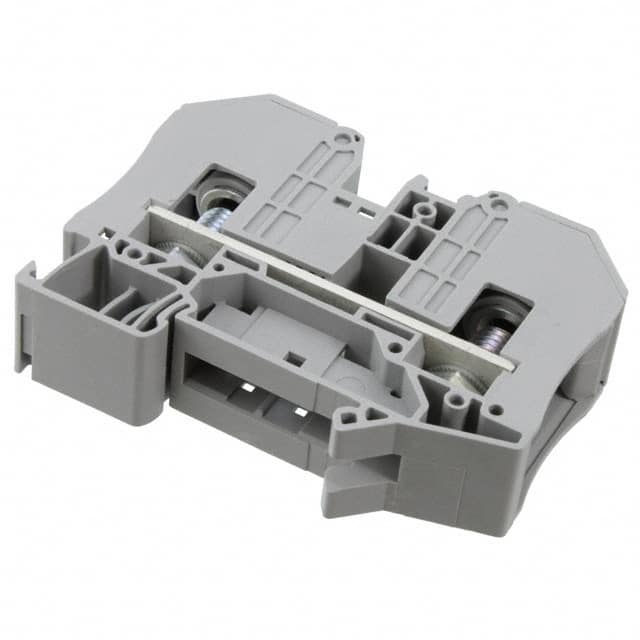

The Phoenix Contact 3049042 is a feed-through terminal block from the RT 8 series, designed for high-current power distribution in industrial control panels. It features a bolt connection with M8 screw thread and accepts solid or stranded conductors from 2.5 mm² to 35 mm² (14 AWG to 2 AWG).
Rated at 125 A nominal current and 1000 V nominal voltage, this terminal block meets IEC 60947-7-1 standards. It has a gray polyamide (PA) insulating body with UL 94 V0 flammability rating. The open side panel allows easy bridging of adjacent blocks.
With dimensions of 20.3 mm width, 84 mm length, and 63.8 mm height on NS 35/7.5 rail (71.3 mm on NS 35/15), it is suitable for compact DIN rail assemblies. Certifications include ABS, CB, CUL, UL, and VDE-PZI.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.39 | $10.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal current is 125 A (with 35 mm² conductor cross section).
The nominal voltage is 1000 V.
It accepts solid and stranded conductors from 2.5 mm² to 35 mm², equivalent to 14 AWG to 2 AWG.
It uses a bolt connection with M8 screw thread, requiring a tightening torque of 4.5 Nm to 5 Nm.
The insulating material is polyamide (PA) with a flammability class of UL 94 V0.
It has 1 position.
It is certified with ABS, CB, CUL, UL, and VDE-PZI.
