| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Type | |
| Automotive Grade | |
| Backlash | |
| For Measuring | |
| Industrial Grade | |
| Insulation Resistance | |
| Life | |
| Linear Range | |
| Linearity | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Power Rating | |
| Resistance | |
| Resistance Tolerance | |
| Resolution | |
| Shaft Actuating Force | |
| Shock | |
| Tape & Reel | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Vibration |

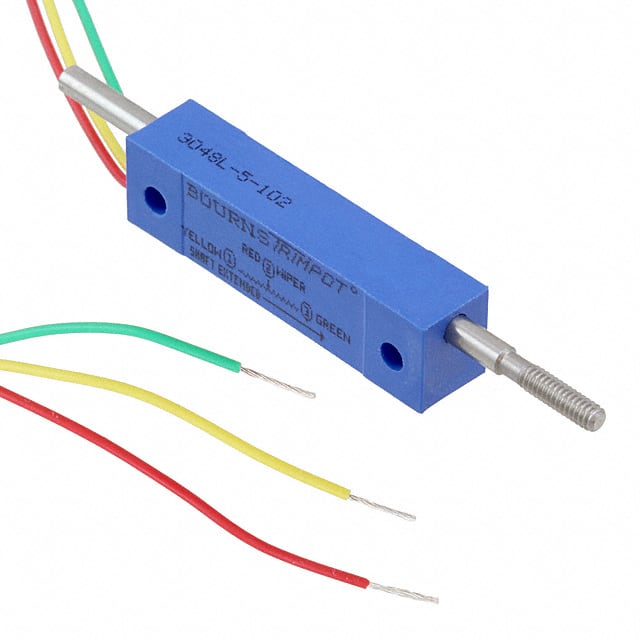

The Bourns 3048L-5-102 is a linear motion potentiometer designed for precise position sensing applications. It provides an electrical travel of 12.70mm (0.50 inches) with a resistance value of 1 kΩ and a tolerance of ±20%. The potentiometer boasts infinite resolution, ensuring smooth and accurate output signals.
Key electrical specifications include ±5% independent linearity and a power rating of 0.25 watts at 70°C. The operating temperature range is -55°C to +125°C. Mechanical features include a negligible backlash and a shaft actuating force of 4 oz. maximum. The component is rated for 500,000 cycles of life.
This potentiometer is designed for chassis mounting and utilizes wire leads for termination. Its compact and lightweight design makes it suitable for various integration needs. The device operates on AC or DC power and offers flexible wire leads for easy connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The electrical travel of the Bourns 3048L-5-102 is 12.70mm (0.50 inches).
The resistance value of the 3048L-5-102 is 1 kΩ.
The Bourns 3048L-5-102 has an independent linearity tolerance of ±5%.
The operating temperature range for this linear potentiometer is -55°C to +125°C.
The Bourns 3048L-5-102 is designed for chassis mounting and uses wire leads for termination.
