| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
320 pcs
|
320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Electrical Travel | |
| For Measuring | |
| Independent Linearity | |
| Insulation Resistance | |
| Lead Style | |
| Life | |
| Linear Range | |
| Linearity | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output | |
| Power Rating | |
| Resistance | |
| Resistance Tolerance | |
| Resolution | |
| Shaft Actuating Force | |
| Shock | |
| Tape & Reel | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Vibration |

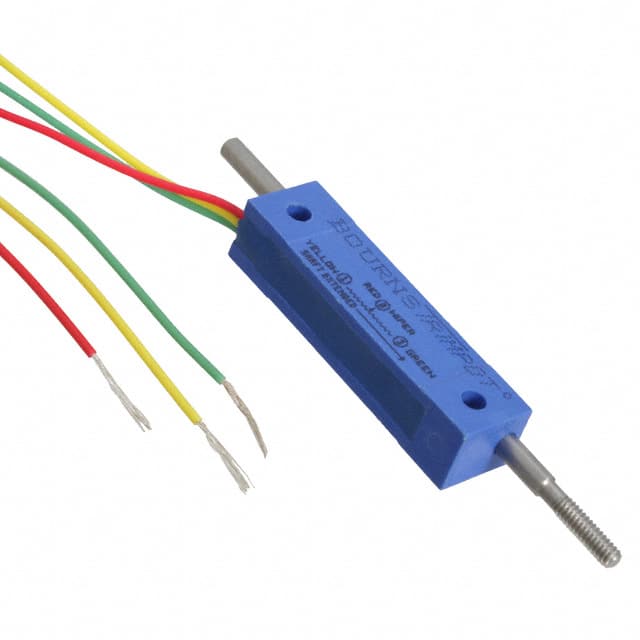

The Bourns 3046L-2-103 is a linear motion potentiometer designed for precise position sensing applications. It offers a resistance of 10 kΩ with a tolerance of ±20% and an independent linearity of ±5%. The sensor provides an electrical travel of 6.35mm (0.25 inches) and infinite resolution, making it suitable for applications requiring accurate linear measurement.
This potentiometer operates within a temperature range of -55°C to +125°C and has a power rating of 0.125W at 70°C. It features a resistive output and is designed for chassis mounting with wire lead terminations. The compact and sealed design contributes to its long life of 500,000 cycles.
Key specifications include a shaft actuating force of 2N max, shock resistance of 50G for 7ms, and vibration resistance of 20G from 10-2K Hz. The unit is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 3046L-2-103 has a resistance of 10 kΩ.
The electrical travel of the 3046L-2-103 is 6.35mm (0.25 inches).
The operating temperature range for the 3046L-2-103 is -55°C to +125°C.
The independent linearity of the Bourns 3046L-2-103 is ±5%.
The mechanical life of the 3046L-2-103 is 500,000 cycles.
