| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Color | |
| Conductor Cross Section (Stranded) (Minimum/Maximum) | |
| Conductor Cross Section Solid (Minimum/Maximum) | |
| Connection Standard | |
| Current | |
| Current (Rated) | |
| Flammability Class | |
| Height | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Style | |
| Length | |
| Maximum Load Current | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pack Quantity | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Surge Voltage Category | |
| Terminal | |
| Termination Style | |
| Type | |
| UL 94 | |
| Voltage | |
| Voltage - Rated | |
| Weight per Piece | |
| Wire Gauge or Range |

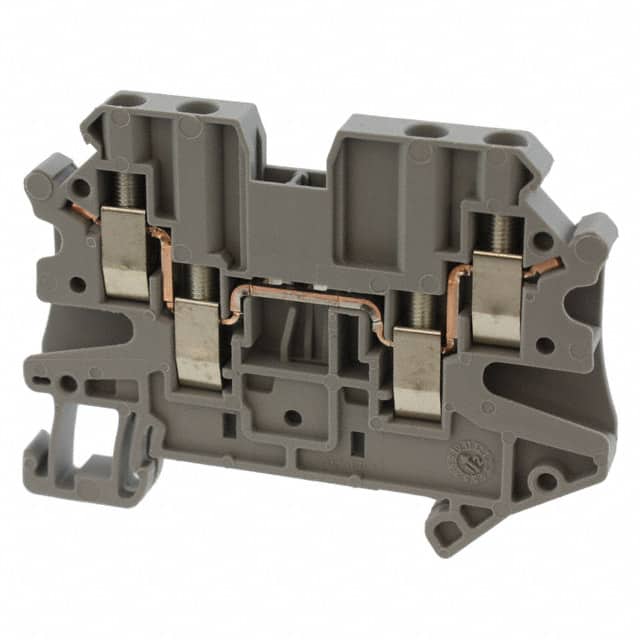

The Phoenix Contact 3044542, part of the UT 2,5-QUATTRO series, is a feed-through modular terminal block designed for DIN rail mounting. It features 4 screw-type connections in a single level and accepts solid or stranded conductors from 0.14 mm² to 4 mm² (AWG 26-12). The terminal block is rated for a nominal current of 24 A and a nominal voltage of 500 V, with a rated surge voltage of 6 kV (pollution degree 3, category III). The insulating material is gray PA (polyamide) with a V0 flammability rating per UL 94. Dimensions are 5.2 mm wide, 65.4 mm long, and 47.5 mm high when mounted on a NS 35/7.5 rail (55 mm on NS 35/15). The terminal block weighs approximately 14.91 g and is supplied in a pack of 50 pieces. It complies with IEC 60947-7-1 and is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.09 | $2.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 3044542 terminal block has 4 positions (4 connections).
The nominal current (IN) is 24 A. The maximum load current is 30 A with a 4 mm² conductor.
The nominal voltage (UN) is 500 V.
The terminal block mounts on NS 35/7.5 or NS 35/15 DIN rails.
It accepts solid or stranded conductors from 0.14 mm² to 4 mm² (AWG 26-12).
The housing is gray.
Yes, it is RoHS3 compliant per the datasheet.
